• SKF H207 Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft
1 1

SKU: H207-SKF

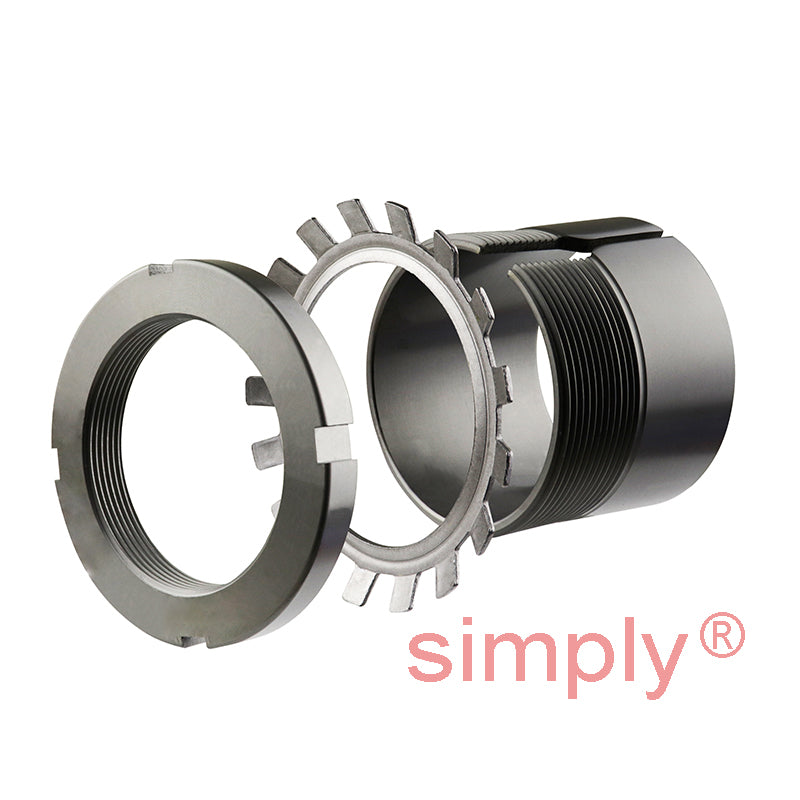

SKF H207 Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft

SKF H207 Adaptor Sleeve with Lock Nut and Locking Device for 30mm Shaft
$23.07 ex VAT
$23.07 ex VAT
Sale Sold out

In stock

Price Break
2+ $10.89
5+ $10.28
10+ $10.16
20+ $10.04
49+ $9.91
74+ $9.79
99+ $9.18
199+ $9.06
249+ $8.94
499+ $8.81
999+ $8.57
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
30mm
Outside Diameter:
52mm
Width:
29mm
Technical
--- Dimensions
d1 30mm
d 35mm
d3 52mm
B1 29mm
B2 9mm
G Thread 35x1.5mm
Weight 0.12 kg
--- Assembly Parts
Sleeve H207
Nut KM7
Washer MB7
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1207K+taper+self+open>1207K</a>
