SKU: GS81104-EU

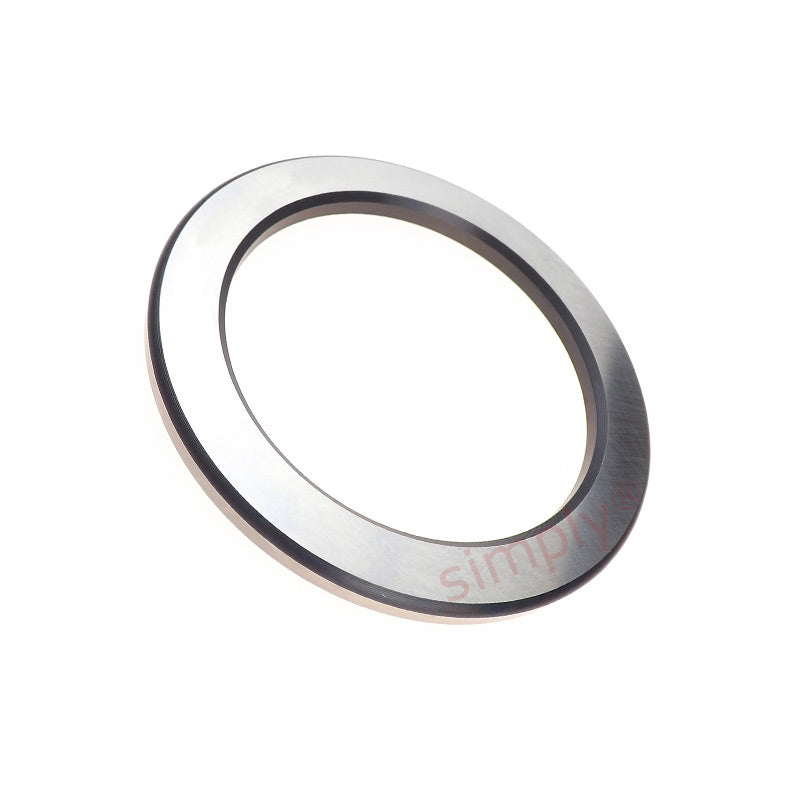

GS81104 Budget Housing Washer Series GS 21x35x2.75mm

Name: GS81104 Budget Housing Washer Series GS 21x35x2.75mm
Brand: Gen
SKU: GS81104-EU
Price: 12.42 CAD
Availability: InStock

$12.42 ex VAT

Sale Sold out

In stock

Price Break

10+ $5.87

19+ $5.54

29+ $5.47

39+ $5.40

49+ $5.34

74+ $5.27

99+ $4.94

199+ $4.88

249+ $4.81

499+ $4.74

999+ $4.61

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Budget GS Type Housing Washers: An accurately machined washer component to be used with needle roller thrust assemblies providing precise centering of the housing or raceway washer. These are thicker than the LS and AS series of washers thus providing a very rigid assembly.
Benefits: Accurately machined, provides centering & rigidity, thicker cross section, inexpensive cost effective solution.

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 21mm
Outside Diameter:: 35mm
Width:: 2.75mm

Technical

d	21mm
D	35mm
B	2.75mm
r1r2	0.3mm
Weight	13 g
