SKU: GS81102-MB

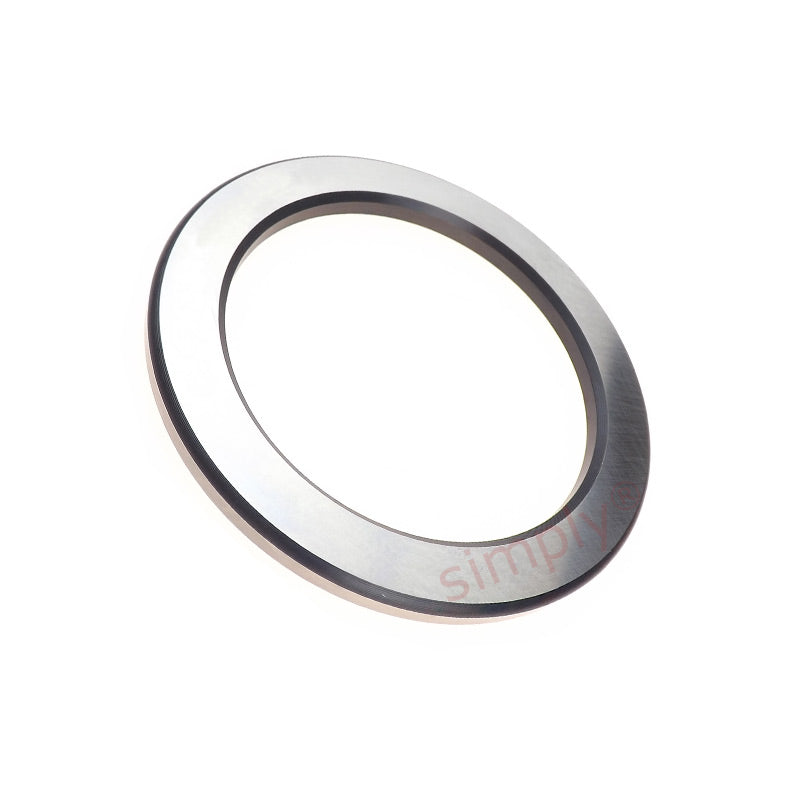

Major Brand GS81102 Shaft Washer Series WS 16x28x2.75mm

Name: Major Brand GS81102 Shaft Washer Series WS 16x28x2.75mm
Brand: Major Brand
SKU: GS81102-MB
Price: 13.66 CAD
Availability: InStock

$13.66 ex VAT

Sale Sold out

In stock

Price Break

10+ $6.45

19+ $6.09

29+ $6.02

39+ $5.95

49+ $5.87

74+ $5.80

99+ $5.44

199+ $5.37

249+ $5.29

499+ $5.22

999+ $5.08

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

GS Type Housing Washers: An accurately machined washer component to be used with needle roller thrust assemblies providing precise centering of the housing or raceway washer. These are thicker than the LS and AS series of washers thus providing a very rigid assembly.
Benefits: Accurately machined, provides centering & rigidity, thicker cross section, inexpensive cost effective solution.

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 16mm
Outside Diameter:: 28mm
Width:: 2.75mm

Technical

d	16mm
D	28mm
B	2.75mm
r1r2	0.3mm
Weight	9 g
