SKU: GRAE35-NPP-B-MB

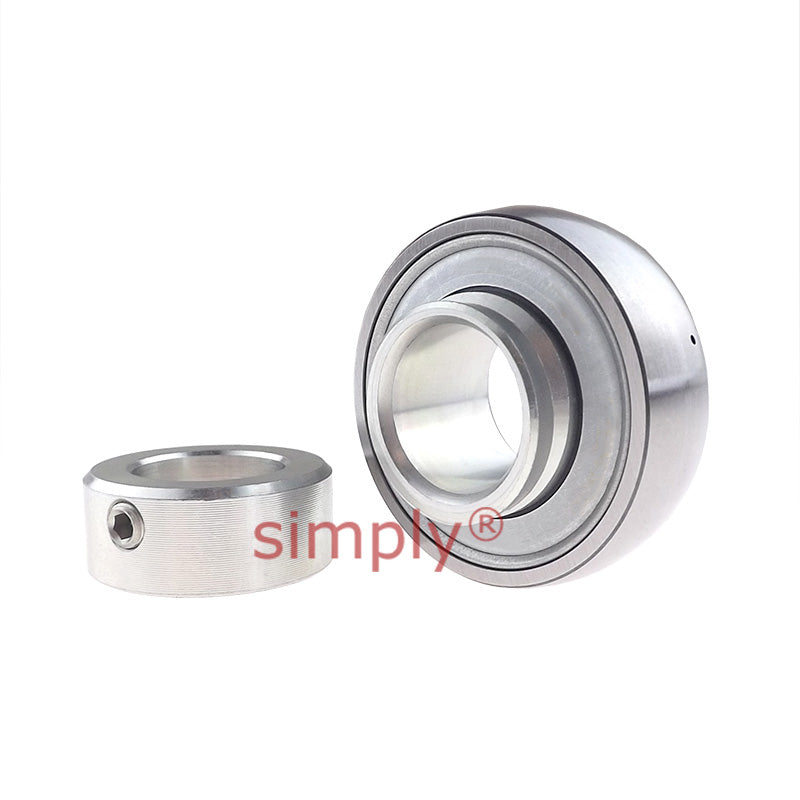

Major Brand GRAE35XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 35x72x39mm
Major Brand GRAE35XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 35x72x39mm
Regular price
$37.12
ex VAT
Regular price
Sale price
$37.12
ex VAT
In stock
Price Break
3+
$17.53
5+
$16.55
10+
$16.35
15+
$16.15
20+
$15.96
30+
$15.76
40+
$14.78
50+
$14.58
60+
$14.38
75+
$14.18
100+
$13.79
Description
Description
|

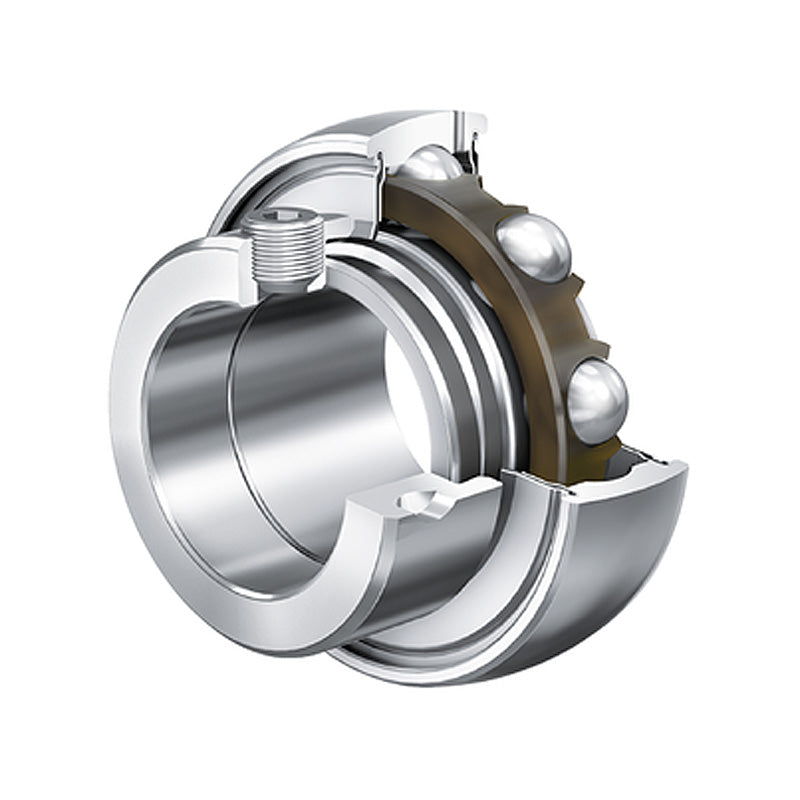

GRAE..-NPP-B Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 39mm
Technical
Technical
| d | 35mm |
|---|---|
| Dsp | 72mm |
| B1 | 39mm |
| B | 25.4mm |
| C | 19mm |
| Ca | 5.6mm |
| d2 | 44.6mm |
| d3 max | 55mm |
| S | 9.5mm |
| W | 5mm |
| Dynamic load Cr | 25500 N |
| Static load C0r | 15300 N |
| Weight | 0.47 kg |
