SKU: GRAE20-NPP-B-FA125.5-INA

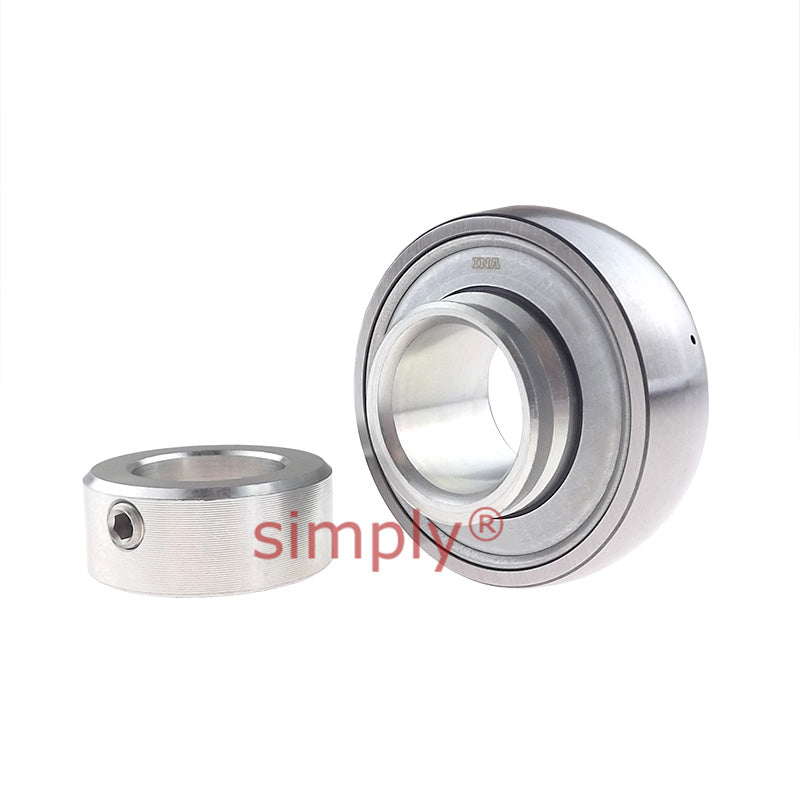

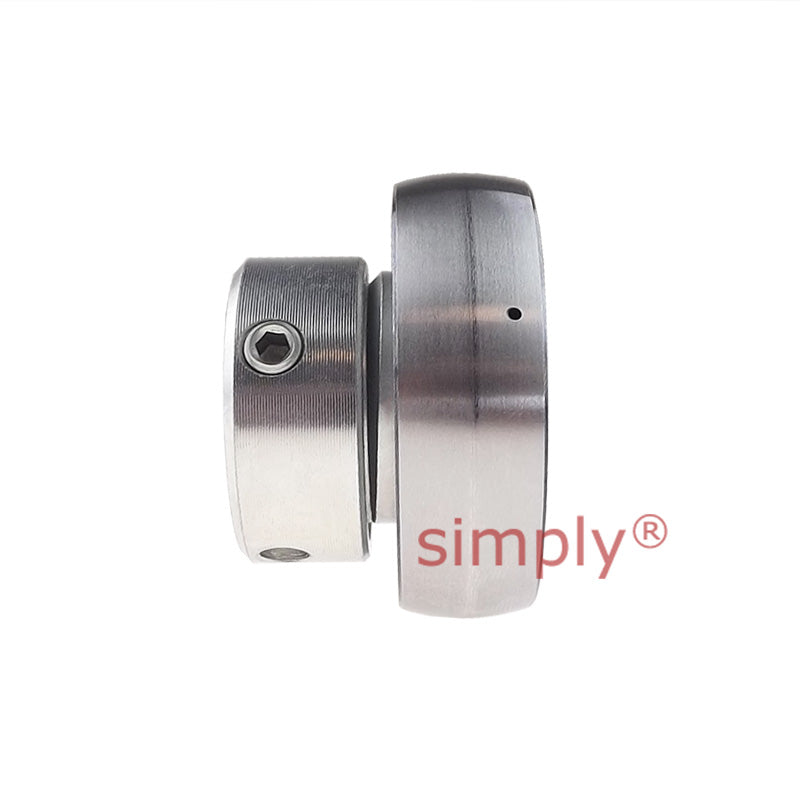

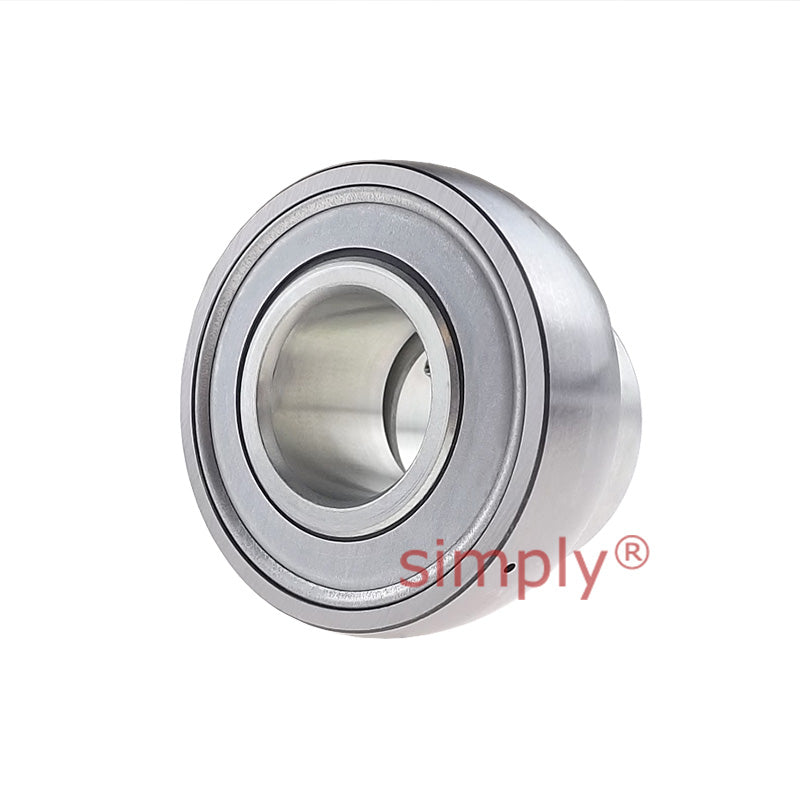

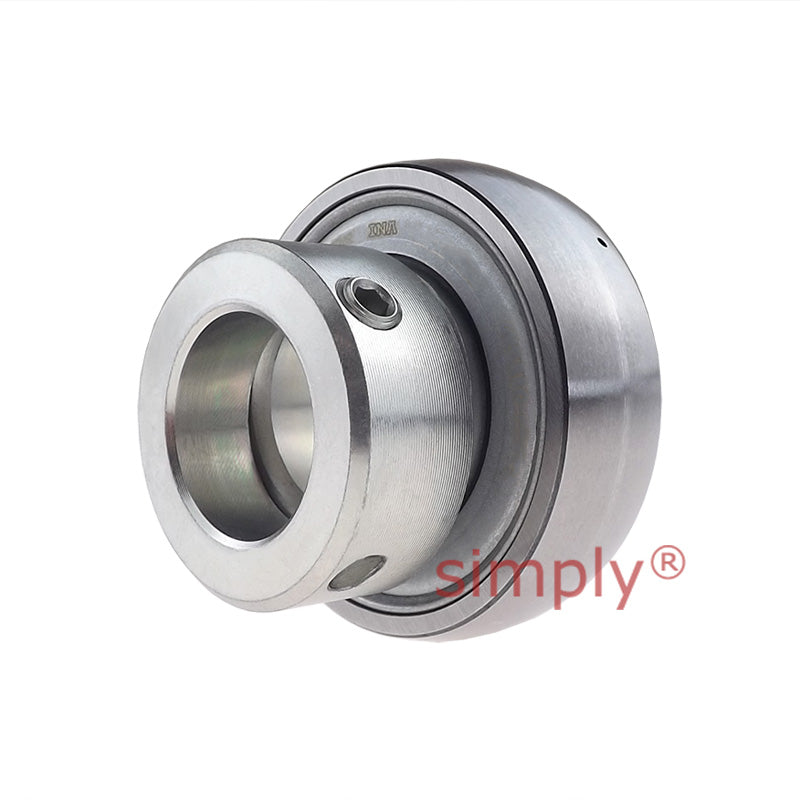

INA GRAE20-NPP-B-FA107/125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with P Seals and Eccentric Collar 20x47x31mm
INA GRAE20-NPP-B-FA107/125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with P Seals and Eccentric Collar 20x47x31mm
Regular price
$47.90
ex VAT
Regular price
Sale price
$47.90
ex VAT
In stock
Price Break
10+
$42.63
19+
$40.24
29+
$39.76
39+
$39.28
49+
$38.80
74+
$38.32
99+
$35.93
199+
$35.45
249+
$34.97
499+
$34.49
999+
$33.53
Couldn't load pickup availability
Description
Description
|

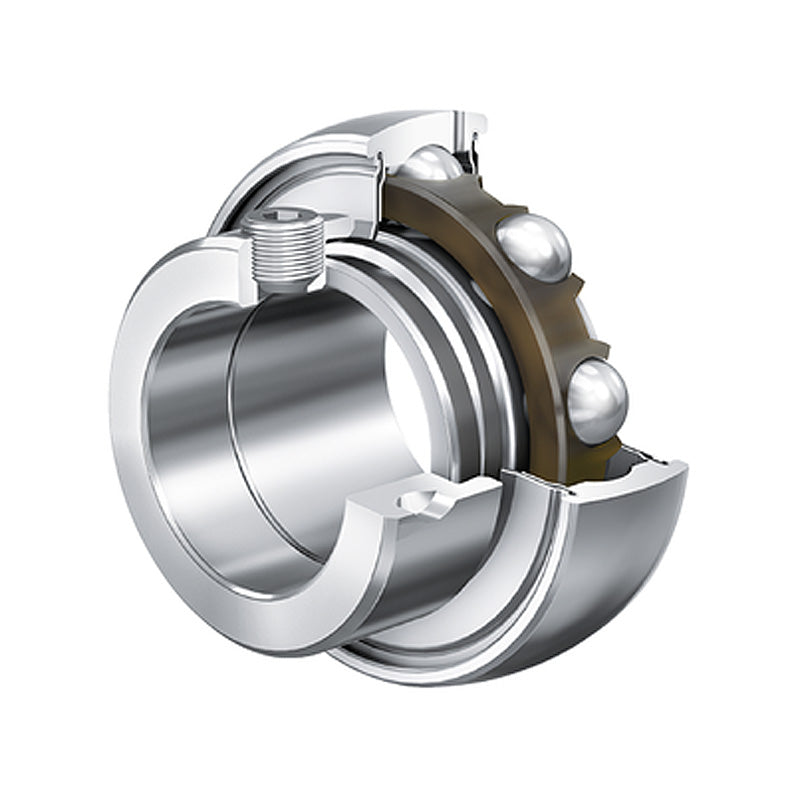

INA GRAE..-NPP-B-FA125.5 Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, anti-corrosion protection, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 31mm
- Type:
- Spherical Outer
Technical
Technical
| d | 20mm |
|---|---|
| Dsp | 47mm |
| B1 | 31mm |
| B | 21.4mm |
| C | 14mm |
| Ca | 4mm |
| d2 | 26.9mm |
| d3 max | 33mm |
| S | 7.5mm |
| W | 3mm |
| Dynamic load Cr | 12800 N |
| Static load C0r | 6600 N |
| Weight | 0.16 kg |
