SKU: GRAE15-NPP-B-INA

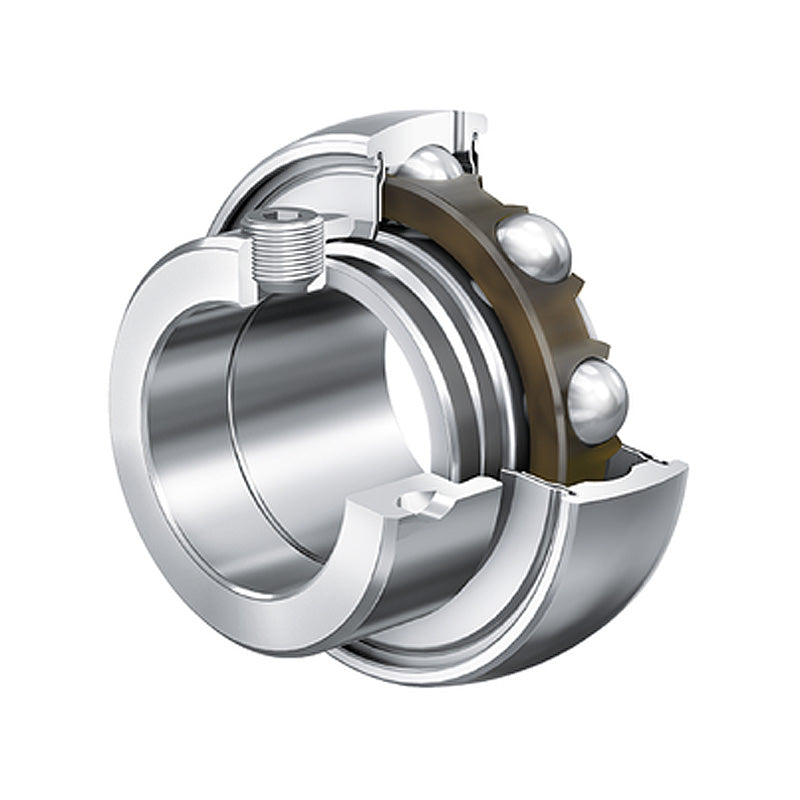

INA GRAE15XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 15x40x28.6mm
INA GRAE15XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 15x40x28.6mm
Regular price
$35.33
ex VAT
Regular price
Sale price
$35.33
ex VAT
In stock
Price Break
3+
$16.69
5+
$15.75
10+
$15.56
15+
$15.38
20+
$15.19
30+
$15.00
40+
$14.06
50+
$13.88
60+
$13.69
75+
$13.50
100+
$13.13
Description
Description
|
INA GRAE..-NPP-B Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 40mm
- Width:
- 28.6mm
Technical
Technical
| d | 15mm |
|---|---|
| Dsp | 40mm |
| B1 | 28.6mm |
| B | 19mm |
| C | 12mm |
| Ca | 3.4mm |
| d2 | 23mm |
| d3 max | 28mm |
| S | 6.5mm |
| W | 3mm |
| Dynamic load Cr | 9800 N |
| Static load C0r | 4750 N |
| Weight | 0.11 kg |
