SKU: GE50ES.EU

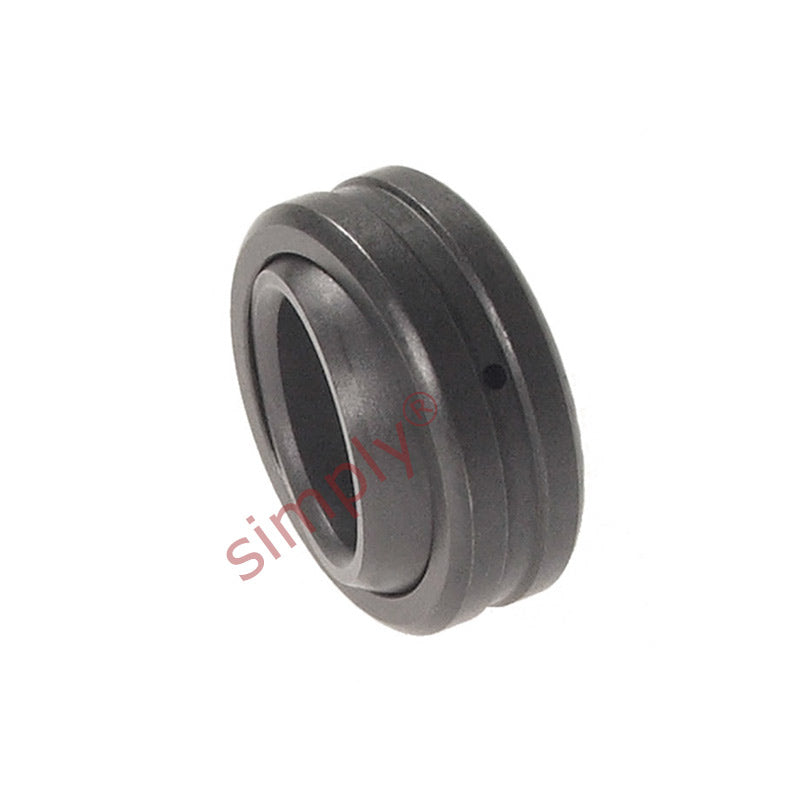

GE50ES Spherical Plain Bearing 50x75x35x28mm
GE50ES Spherical Plain Bearing 50x75x35x28mm
Regular price
$14.72
ex VAT
Regular price
Sale price
$14.72
ex VAT
In stock
Price Break
10+
$6.95
19+
$6.56
29+
$6.48
39+
$6.40
49+
$6.33
74+
$6.25
99+
$5.86
199+
$5.78
249+
$5.70
499+
$5.62
999+
$5.47
Description
Description
|
Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 75mm
- Width:
- 35mm
Technical
Technical
| d | 50mm |
|---|---|
| D | 75mm |
| B | 35mm |
| C | 28mm |
| dk | 66mm |
| rs min | 0.6mm |
| r1s min | 1mm |
| Angle α | 6° |
| Dynamic load Co | 156 kN |
| Static load Cor | 780 kN |
| Weight | 0.546 kg |
