SKU: GE20PB-MB

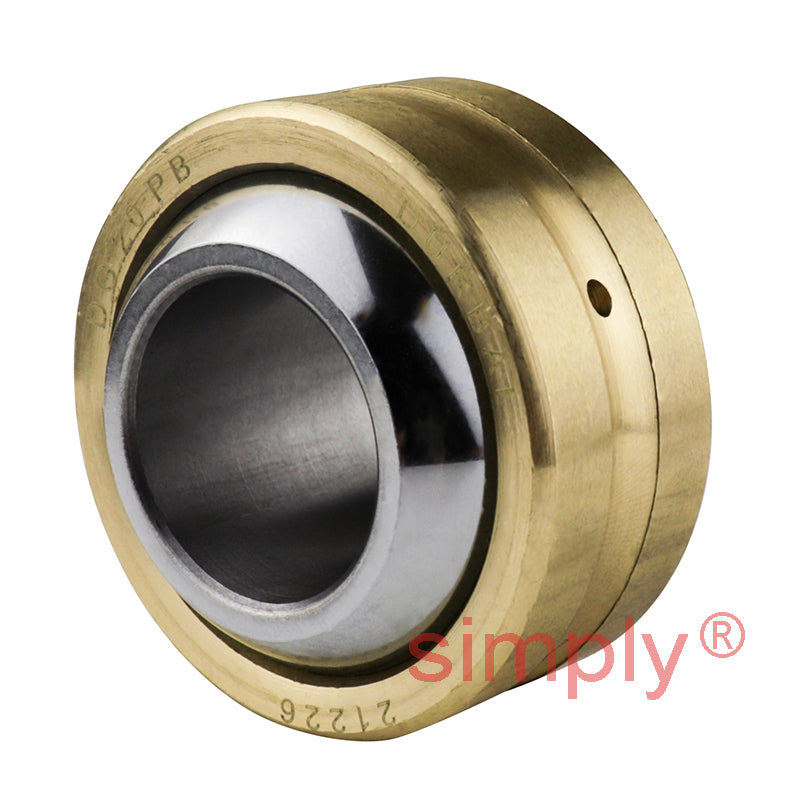

Major Brand GE20PB Steel / Phosphor Bronze Spherical Plain Bearing 20x40x25x18mm
Major Brand GE20PB Steel / Phosphor Bronze Spherical Plain Bearing 20x40x25x18mm
Regular price
$124.83
ex VAT
Regular price
Sale price
$124.83
ex VAT
In stock
Price Break
10+
$111.10
19+
$104.86
29+
$103.61
39+
$102.36
49+
$101.11
74+
$99.86
99+
$93.62
199+
$92.37
249+
$91.13
499+
$89.88
999+
$87.38
Couldn't load pickup availability
Description
Description
|
Spherical Plain Bearing with Phosphor Bronze Race: Consisting of phosphor bronze raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 40mm
- Width:
- 25mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 40mm |
| B | 25mm |
| C | 18mm |
| dk | 34.925mm |
| Angle α | 14° |
| Dynamic load Co | 31.5 kN |
| Static load Cor | 80 kN |
| Weight | 0.15 kg |
