SKU: GE200ES.EU

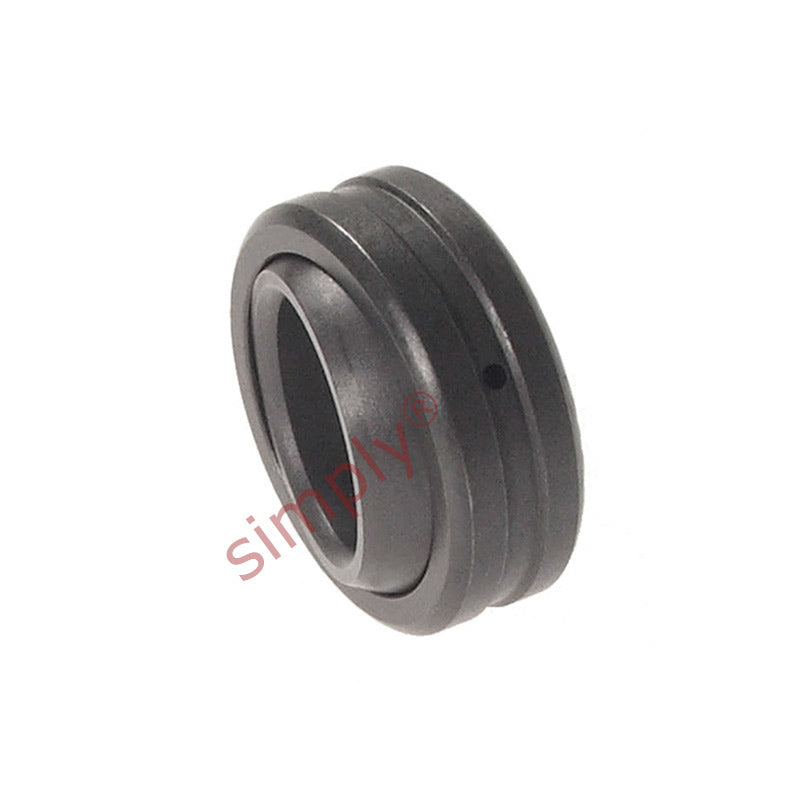

GE200ES Spherical Plain Bearing 200x290x130x100mm
GE200ES Spherical Plain Bearing 200x290x130x100mm
Regular price
$1,827.30
ex VAT
Regular price
Sale price
$1,827.30
ex VAT
In stock
Price Break
10+
$1,626.30
19+
$1,534.93
29+
$1,516.66
39+
$1,498.39
49+
$1,480.11
74+
$1,461.84
99+
$1,370.48
199+
$1,352.20
249+
$1,333.93
499+
$1,315.66
999+
$1,279.11
Couldn't load pickup availability
Description
Description
|
Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 200mm
- Outside Diameter:
- 290mm
- Width:
- 130mm
Technical
Technical
| d | 200mm |
|---|---|
| D | 290mm |
| B | 130mm |
| C | 100mm |
| dk | 250mm |
| rs min | 1.1mm |
| r1s min | 1.1mm |
| Angle α | 7° |
| Dynamic load Co | 2120 kN |
| Static load Cor | 10600 kN |
| Weight | 28.03 kg |
