SKU: GE16ES.EU

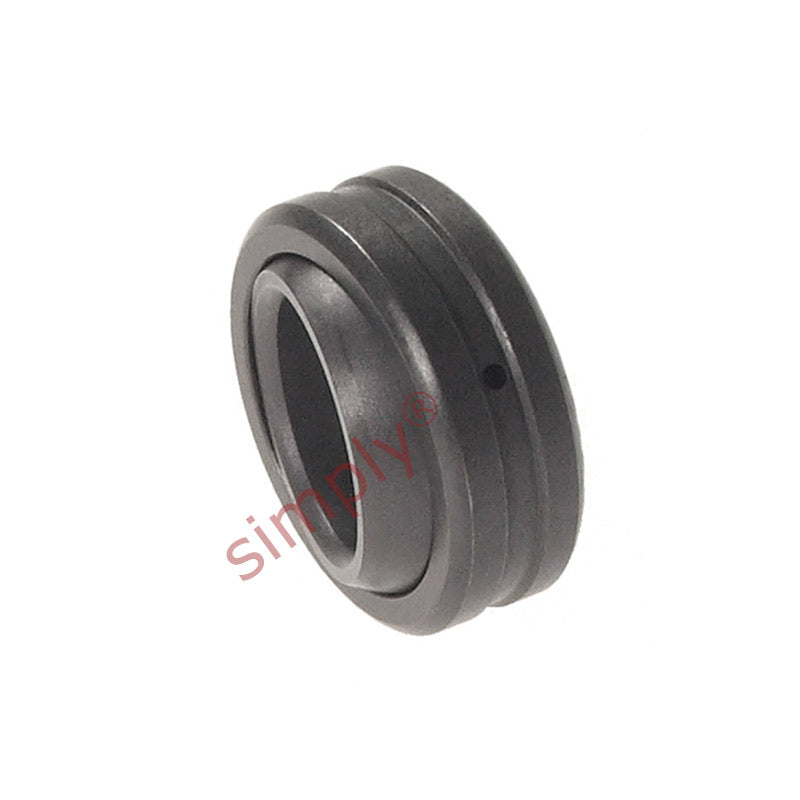

GE16ES Spherical Plain Bearing 16x30x14x10mm
GE16ES Spherical Plain Bearing 16x30x14x10mm
Regular price
$11.12
ex VAT
Regular price
Sale price
$11.12
ex VAT
In stock
Price Break
10+
$9.90
19+
$9.34
29+
$9.23
39+
$9.12
49+
$9.01
74+
$8.90
99+
$8.34
199+
$8.23
249+
$8.12
499+
$8.01
999+
$7.78
Couldn't load pickup availability
Description
Description
|
Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 30mm
- Width:
- 14mm
Technical
Technical
| d | 16mm |
|---|---|
| D | 30mm |
| B | 14mm |
| C | 10mm |
| dk | 25mm |
| rs min | 0.3mm |
| r1s min | 0.3mm |
| Angle α | 10° |
| Dynamic load Co | 21.2 kN |
| Static load Cor | 106 kN |
| Weight | 0.027 kg |
