SKU: GA12-FLURO

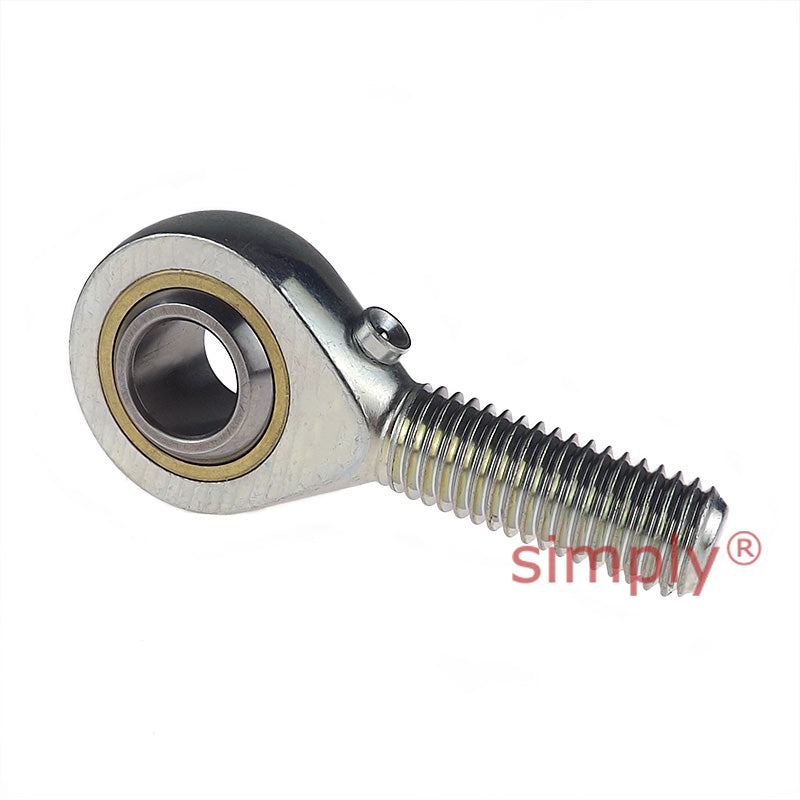

Fluro GA12 Right Hand Steel / Brass Male Plain Rod End M12 Thread

Name: Fluro GA12 Right Hand Steel / Brass Male Plain Rod End M12 Thread
Brand: Fluro
SKU: GA12-FLURO
Price: 37.14 CAD
Availability: InStock

$37.14 ex VAT

Sale Sold out

In stock

Price Break

3+ $17.54

5+ $16.55

9+ $16.36

19+ $16.16

49+ $15.96

74+ $15.77

99+ $14.78

199+ $14.58

249+ $14.39

499+ $14.19

999+ $13.79

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Fluro GA Series Steel / Brass Maintenance Required Male Plain Rod Ends: Rod Ends with male thread made from free-cutting or heat-treated steel. Zinc plated and fitted with a grease nipple. Especially suited for axial loads.
Benefits: Grease nipple for easy re-greasing

Brand / Quality:: Fluro - High Quality
Thread Size:: M12
Thread M / F:: Male
Thread Direction:: Right Hand
Thread Length:: 12mm
Inside Diameter:: 12mm
Material:: Steel / Brass

Technical

Bore Size D	12mm
B	16mm
M	12mm
A	32mm
F	57mm
L	70mm
O	15.4mm
Thread Size G	M12
GL	32mm
Static Load Co	25.5kN
Dynamic Load	10kN
Limiting Speed	450rev/min
Approx weight	0.087kg
