SKU: FYTB45TF-SKF

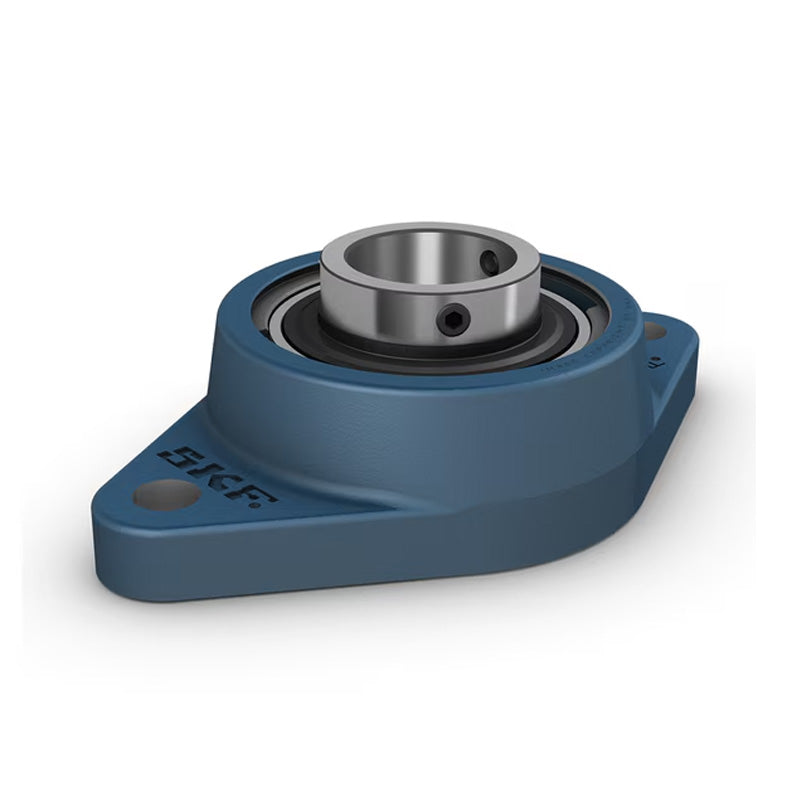

SKF FYTB45TF Oval Cast Housing with Grub Screw 45mm Insert
SKF FYTB45TF Oval Cast Housing with Grub Screw 45mm Insert
Regular price
$91.73
ex VAT
Regular price
Sale price
$91.73
ex VAT
In stock
Price Break
10+
$81.64
19+
$77.05
29+
$76.14
39+
$75.22
49+
$74.30
74+
$73.38
99+
$68.80
199+
$67.88
249+
$66.96
499+
$66.05
999+
$64.21
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Style:
- FYTB
- Bolt Hole Centres:
- 148.5mm
Technical
Technical
| d | 45mm |
|---|---|
| A1 | 39mm |
| A2 | 14mm |
| B | 49.2mm |
| Da | 98.4mm |
| H | 178.5mm |
| J | 148.5mm |
| L | 111mm |
| N | 16mm |
| G | 14mm |
| s1 | 30.2mm |
| T | 54.2mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 4300 rpm |
| A5 | 23mm |
| Weight | 1.8 kg |
| Compatible end cover closed | ECY209 |
