SKU: FYC45TF-SKF

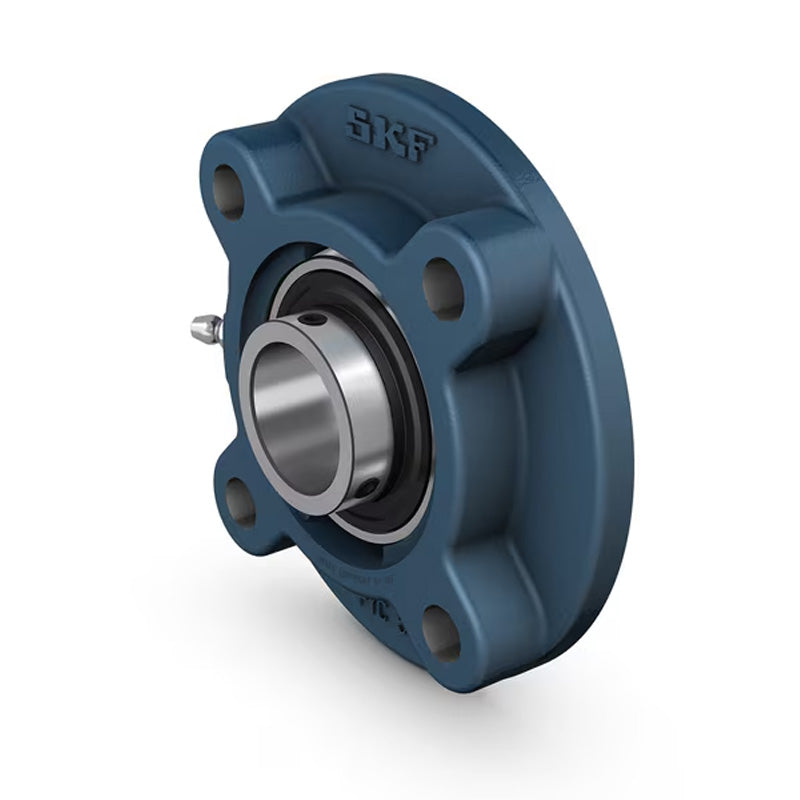

SKF FYC45TF Round Cast Housing with Grub Screw 45mm Insert
SKF FYC45TF Round Cast Housing with Grub Screw 45mm Insert
Regular price
$193.10
ex VAT
Regular price
Sale price
$193.10
ex VAT
In stock
Price Break
10+
$171.86
19+
$162.20
29+
$160.27
39+
$158.34
49+
$156.41
74+
$154.48
99+
$144.83
199+
$142.89
249+
$140.96
499+
$139.03
999+
$135.17
Couldn't load pickup availability
Description
Description
|
SKF Round Flanged Y-bearing Units with Cast Housing: These units have a round flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Style:
- FYC
- Pitch Circle Diameter:
- 132mm
Technical
Technical
| d | 45mm |
|---|---|
| A1 | 38mm |
| A2 | 14mm |
| A3 | 12mm |
| B | 49.2mm |
| Da h8 | 105mm |
| J | 132mm |
| J1 | 93.3mm |
| L | 160mm |
| N | 18mm |
| G | 14mm |
| s1 | 30.2mm |
| T | 40.2mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 4300 rpm |
| Weight | 2.65 kg |
