SKU: FY60FM-SKF

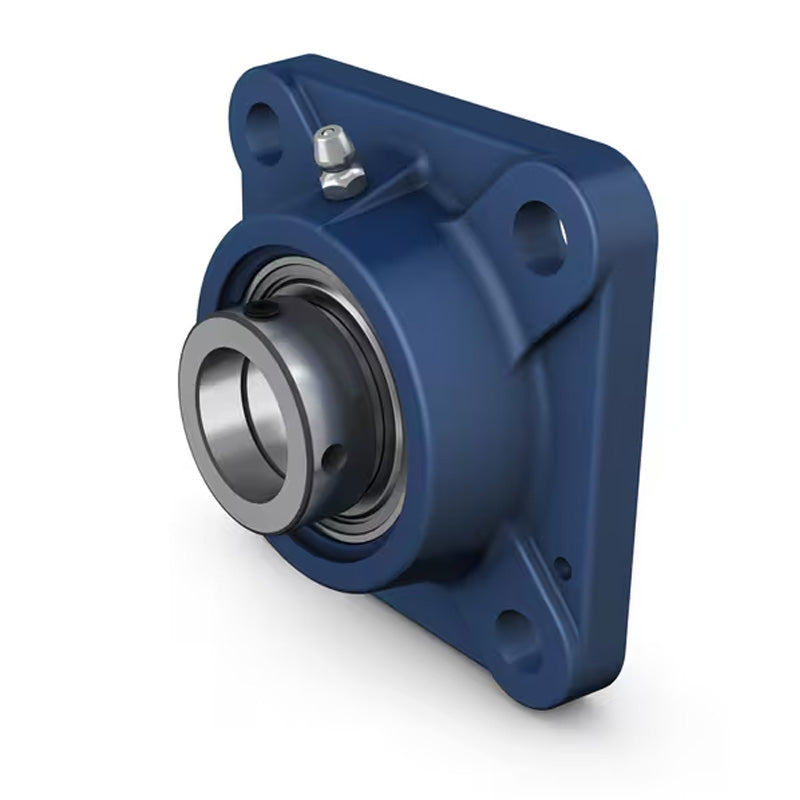

SKF FY60FM Square Cast Housing with Eccentric Locking Collar 60mm Insert
SKF FY60FM Square Cast Housing with Eccentric Locking Collar 60mm Insert
Regular price
$297.14
ex VAT
Regular price
Sale price
$297.14
ex VAT
In stock
Price Break
10+
$264.45
19+
$249.60
29+
$246.63
39+
$243.65
49+
$240.68
74+
$237.71
99+
$222.86
199+
$219.88
249+
$216.91
499+
$213.94
999+
$208.00
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Style:
- FY
- Bolt Hole Centres:
- 143mm
Technical
Technical
| d | 60mm |
|---|---|
| A1 | 52mm |
| A2 | 17mm |
| B1 | 53.1mm |
| Da | 161.9mm |
| J | 143mm |
| L | 175mm |
| N | 18mm |
| G | 16mm |
| s1 | 39.6mm |
| T | 73.6mm |
| Static load Cr | 36 kN |
| Dynamic load Cor | 52.7 kN |
| Fatigue load limit Pu | 1.53 kN |
| Limiting speed | 3400 rpm |
| A5 | 35.5mm |
| Weight | 4.7 kg |
| Compatible end cover closed | ECY212 |
