SKU: FY55WF-SKF

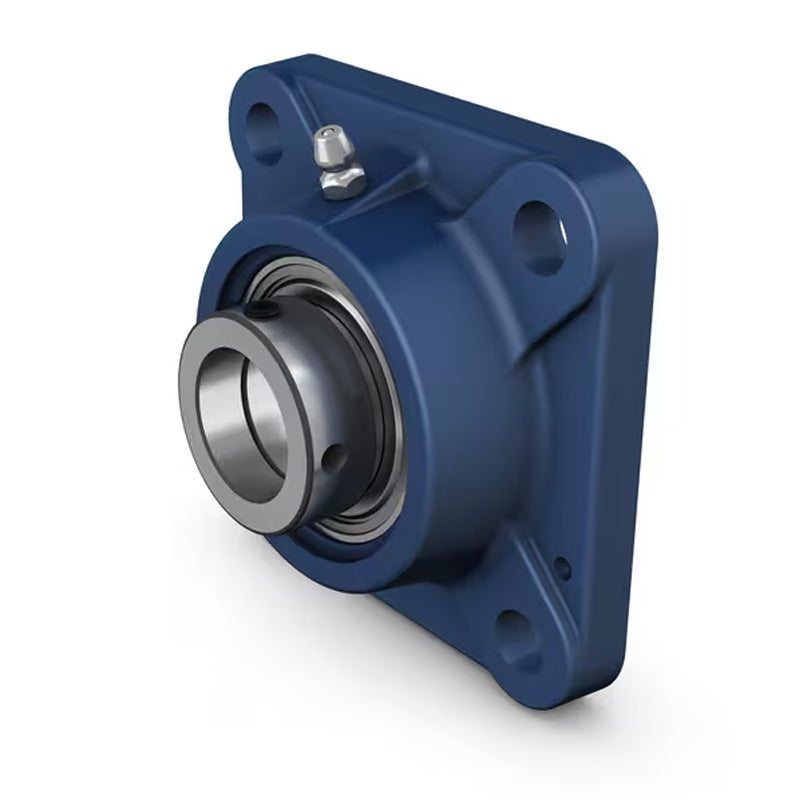

SKF FY55WF Square Cast Housing with Eccentric Locking Collar 55mm Insert
SKF FY55WF Square Cast Housing with Eccentric Locking Collar 55mm Insert
Regular price
$269.77
ex VAT
Regular price
Sale price
$269.77
ex VAT
In stock
Price Break
10+
$240.10
19+
$226.61
29+
$223.91
39+
$221.21
49+
$218.51
74+
$215.82
99+
$202.33
199+
$199.63
249+
$196.93
499+
$194.23
999+
$188.84
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Style:
- FY
- Bolt Hole Centres:
- 130mm
Technical
Technical
| d | 55mm |
|---|---|
| A1 | 47.5mm |
| A2 | 16mm |
| B1 | 71.4mm |
| Da | 150.8mm |
| J | 130mm |
| L | 162mm |
| N | 18mm |
| G | 16mm |
| s1 | 43.6mm |
| T | 74.6mm |
| Static load Cr | 29 kN |
| Dynamic load Cor | 43.6 kN |
| Fatigue load limit Pu | 1.25 kN |
| Limiting speed | 3600 rpm |
| A5 | 34mm |
| Weight | 3.85 kg |
| Compatible end cover closed | ECY211 |
