SKU: FY55TF/VA201-SKF

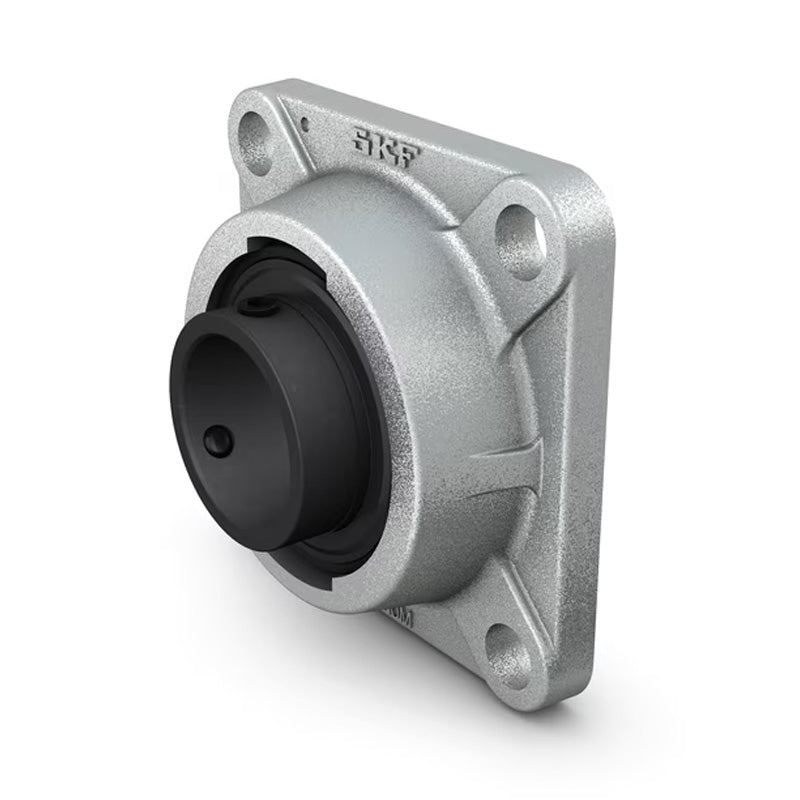

SKF FY55TFVA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 55mm
SKF FY55TFVA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 55mm
Regular price
$689.33
ex VAT
Regular price
Sale price
$689.33
ex VAT
In stock
Price Break
10+
$613.50
19+
$579.04
29+
$572.14
39+
$565.25
49+
$558.36
74+
$551.46
99+
$517.00
199+
$510.10
249+
$503.21
499+
$496.32
999+
$482.53
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 55mm |
|---|---|
| A1 | 47.5mm |
| A2 | 16mm |
| B | 55.6mm |
| J | 130mm |
| L | 162mm |
| N | 19mm |
| G | 16mm |
| T | 64.4mm |
| Dynamic load C | 43.6 kN |
| Static load Co | 29 kN |
| Weight | 3.59 kg |
