SKU: FY40TF/VA201-SKF

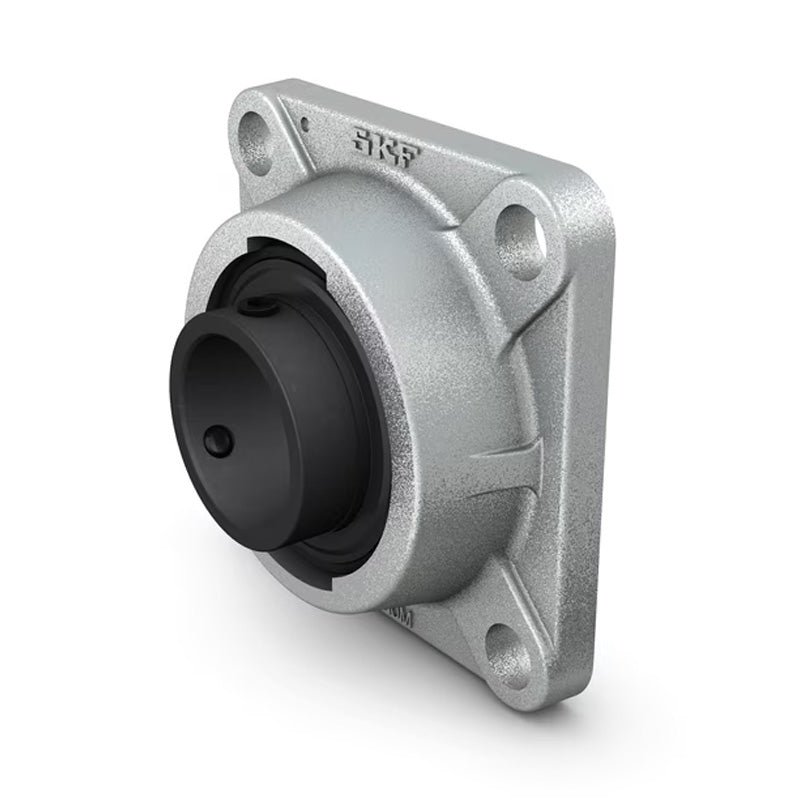

SKF FY40TFVA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 40mm
SKF FY40TFVA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 40mm
Regular price
$566.15
ex VAT
Regular price
Sale price
$566.15
ex VAT
In stock
Price Break
10+
$503.87
19+
$475.57
29+
$469.90
39+
$464.24
49+
$458.58
74+
$452.92
99+
$424.61
199+
$418.95
249+
$413.29
499+
$407.63
999+
$396.31
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Temperature Range:
- High Temp
Technical
Technical
| d | 40mm |
|---|---|
| A1 | 38.5mm |
| A2 | 14mm |
| B | 49.2mm |
| J | 101.5mm |
| L | 130mm |
| N | 14.3mm |
| G | 12mm |
| T | 54.2mm |
| Dynamic load C | 30.7 kN |
| Static load Co | 19 kN |
| Weight | 1.9 kg |
