SKU: FY30TF-SKF

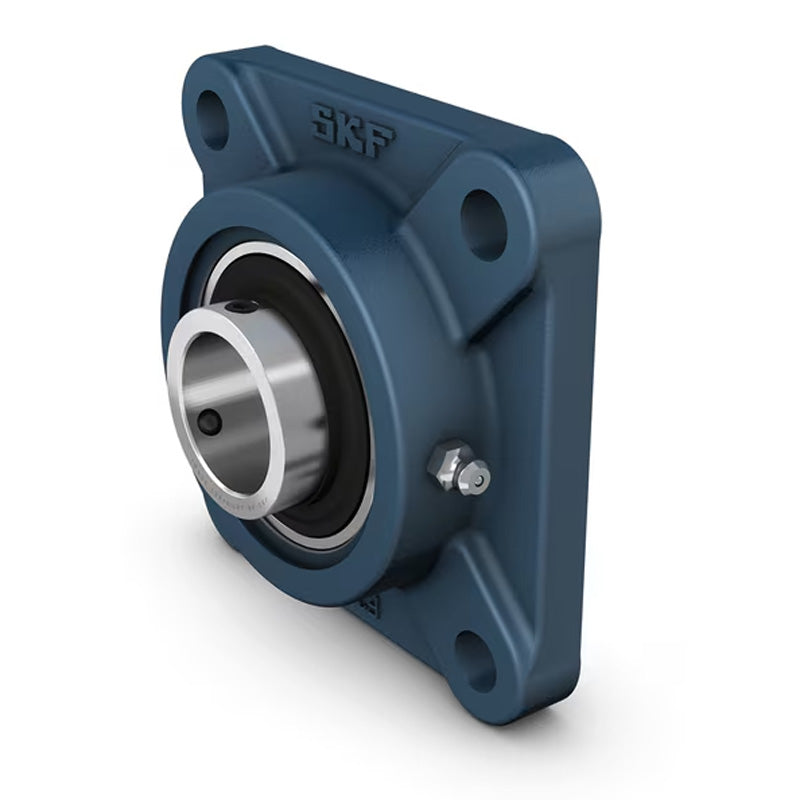

SKF FY30TF Square Cast Housing with Grub Screw 30mm Insert
SKF FY30TF Square Cast Housing with Grub Screw 30mm Insert
Regular price
$94.26
ex VAT
Regular price
Sale price
$94.26
ex VAT
In stock
Price Break
10+
$83.89
19+
$79.18
29+
$78.24
39+
$77.29
49+
$76.35
74+
$75.41
99+
$70.70
199+
$69.75
249+
$68.81
499+
$67.87
999+
$65.98
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Style:
- FY
- Bolt Hole Centres:
- 82.5mm
Technical
Technical
| d | 30mm |
|---|---|
| A1 | 32.5mm |
| A2 | 13mm |
| B | 38.1mm |
| Da | 93.7mm |
| J | 82.5mm |
| L | 108mm |
| N | 11.5mm |
| G | 10mm |
| s1 | 22.2mm |
| T | 42.2mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 6300 rpm |
| A5 | 20mm |
| Weight | 1.1 kg |
| Compatible end cover closed | ECY206 |
