SKU: FY15FM-SKF
SKF FY15FM Square Cast Housing with Eccentric Locking Collar 15mm Insert
SKF FY15FM Square Cast Housing with Eccentric Locking Collar 15mm Insert
Regular price
$47.53
ex VAT
Regular price
Sale price
$47.53
ex VAT
In stock
Price Break
10+
$22.45
20+
$21.18
30+
$20.93
40+
$20.68
50+
$20.43
75+
$20.18
100+
$18.92
200+
$18.66
250+
$18.41
500+
$18.16
1000+
$17.65
Description
Description
|

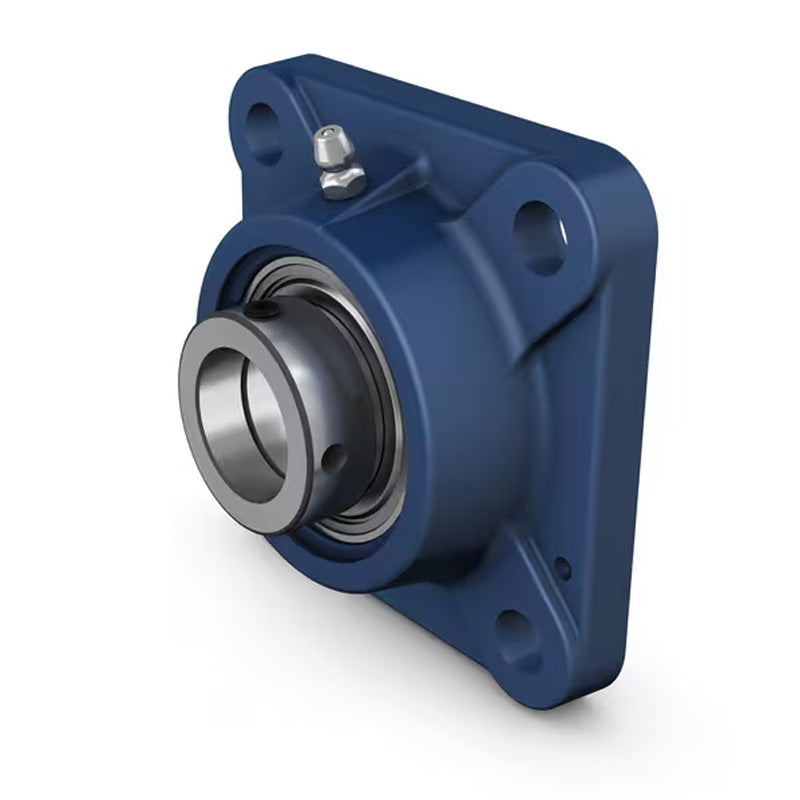

SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 15mm
- Style:
- FY
- Bolt Hole Centres:
- 54mm
Technical
Technical
| d | 15mm |
|---|---|
| A1 | 26mm |
| A2 | 11mm |
| B1 | 28.6mm |
| Da | 55.6mm |
| J | 54mm |
| L | 76mm |
| N | 11.5mm |
| G | 10mm |
| s1 | 22.1mm |
| T | 39.1mm |
| Static load Cr | 4.75 kN |
| Dynamic load Cor | 9.56 kN |
| Fatigue load limit Pu | 0.2 kN |
| Limiting speed | 9500 rpm |
| Weight | 0.5 kg |
