SKU: FY1.15/16TF/VA201-SKF

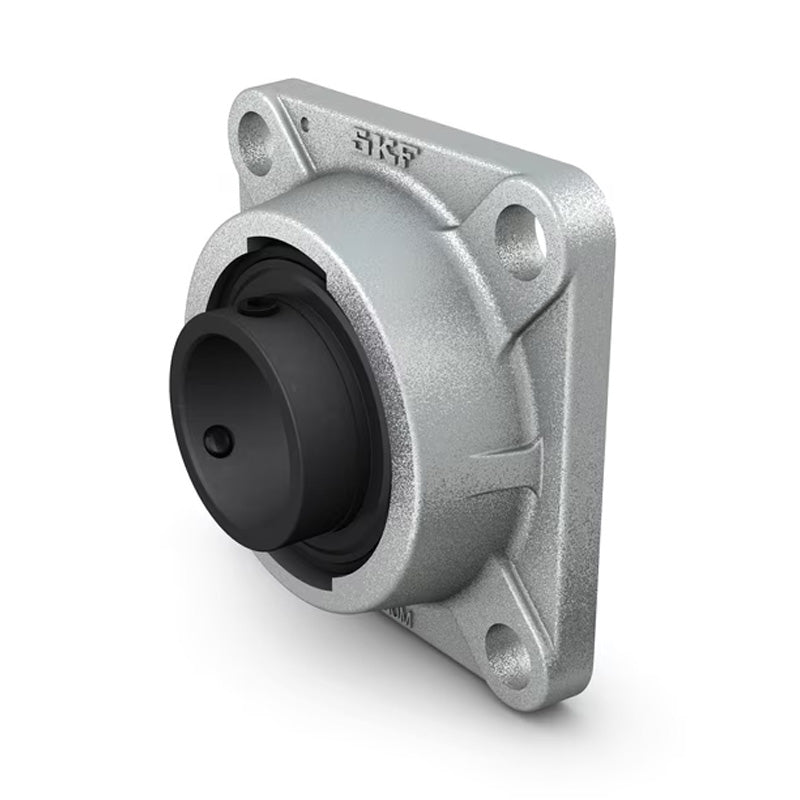

SKF FY1-15/16TF/VA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-15/16inch
SKF FY1-15/16TF/VA201 Y Bearing Four Bolt Square High Temperature Flange Unit Housing with Steel Cage Insert for Imperial Shaft 1-15/16inch
Regular price
$517.39
ex VAT
Regular price
Sale price
$517.39
ex VAT
In stock
Price Break
10+
$460.48
19+
$434.61
29+
$429.43
39+
$424.26
49+
$419.09
74+
$413.91
99+
$388.04
199+
$382.87
249+
$377.69
499+
$372.52
999+
$362.17
Couldn't load pickup availability
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-15/16 inch |
|---|---|
| A1 | 43mm |
| A2 | 15mm |
| B | 51.6mm |
| J | 111mm |
| L | 143mm |
| N | 15.9mm |
| G | 14mm |
| T | 60.6mm |
| Dynamic load C | 35.1 kN |
| Static load Co | 23.2 kN |
| Weight | 2.58 kg |
