SKU: FLN12-PBC

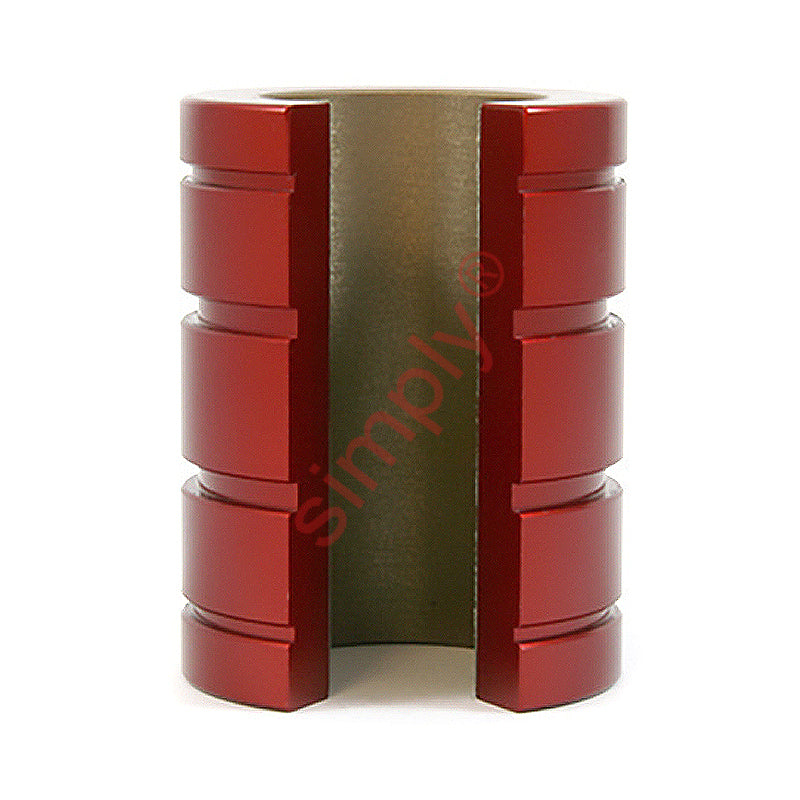

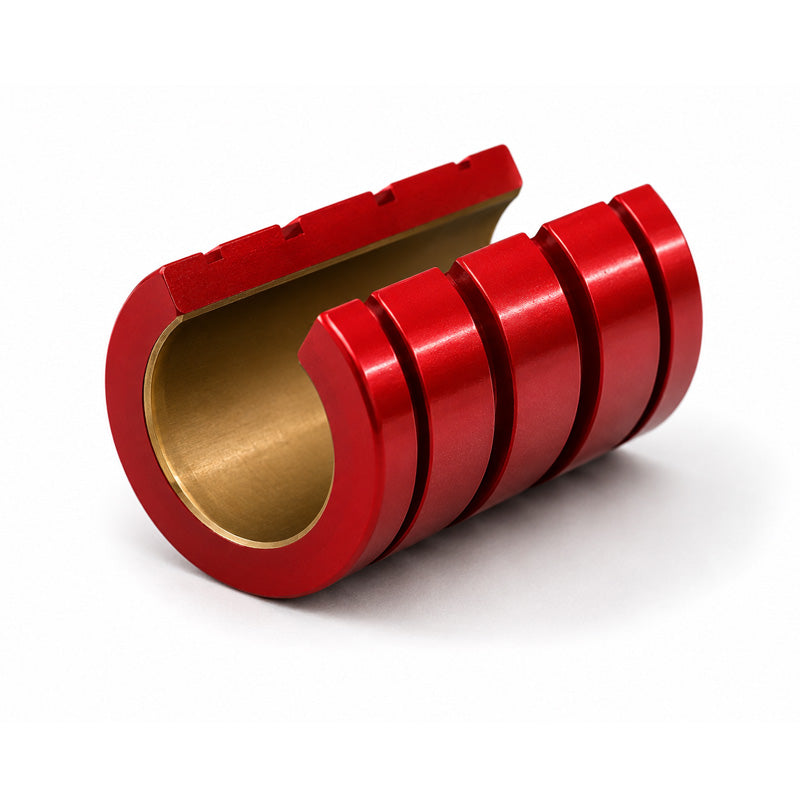

PBC FLN 12 Imperial Open Precision Linear Plain Bearing with Frelon Gold 0.75x1.25x1.625 inch (Allow 2-3 Days)
PBC FLN 12 Imperial Open Precision Linear Plain Bearing with Frelon Gold 0.75x1.25x1.625 inch (Allow 2-3 Days)
Regular price
$102.01
ex VAT
Regular price
Sale price
$102.01
ex VAT
In stock
Price Break
3+
$48.18
5+
$45.47
9+
$44.93
19+
$44.39
49+
$43.85
74+
$43.31
99+
$40.60
199+
$40.06
249+
$39.52
499+
$38.98
999+
$37.89
Description
Description

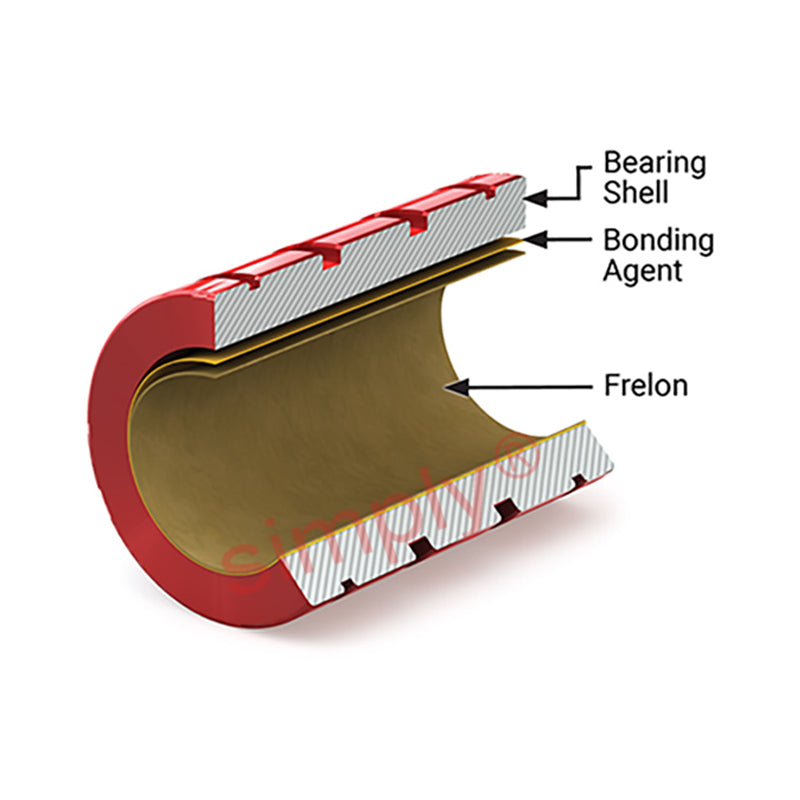

PBC FLN Imperial Open Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Outside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Length:
- 41.28mm = 1.625 (1-5/8) inch
Technical
Technical
| Inside Diameter (A) | 19.05mm = 0.75 (3/4) inch |
|---|---|
| Outside Diameter (B) | 31.75mm = 1.25 (1-1/4) inch |
| Width (C) | 41.28mm = 1.625 (1-5/8) inch |
| Nominal Bore Size | 3/4 inch |
| Effective Surface Area (Square Inch) | 1.27 inch |
| Max Static Load | 16.93kN |
| Weight | 0.049kg |
