SKU: FLN10-PBC
PBC FLN 10 Imperial Open Precision Linear Plain Bearing with Frelon Gold 0.625x1.125x1.5 inch (Allow 2-3 Days)
PBC FLN 10 Imperial Open Precision Linear Plain Bearing with Frelon Gold 0.625x1.125x1.5 inch (Allow 2-3 Days)
Regular price
$98.09
ex VAT
Regular price
Sale price
$98.09
ex VAT
In stock
Price Break
3+
$46.33
5+
$43.72
9+
$43.20
19+
$42.68
49+
$42.16
74+
$41.64
99+
$39.04
199+
$38.52
249+
$38.00
499+
$37.48
999+
$36.44
Description
Description

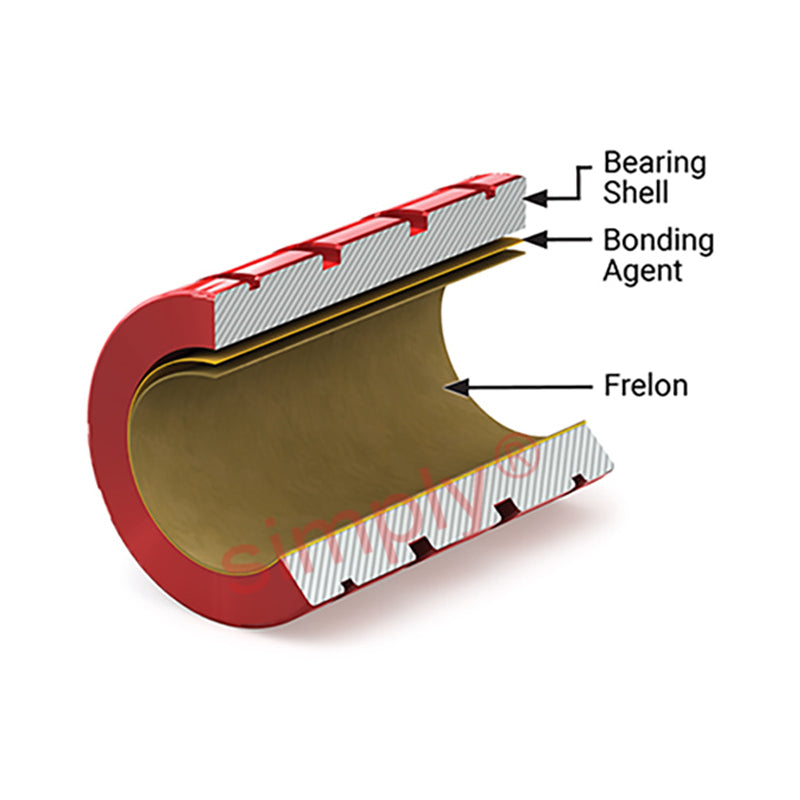

PBC FLN Imperial Open Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Outside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Length:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical

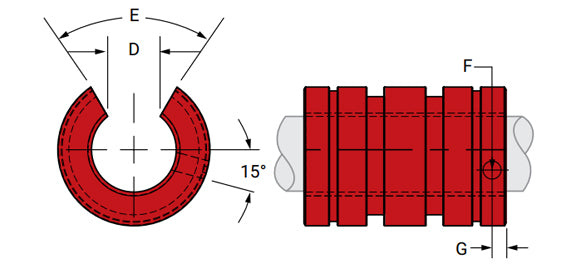

| Inside Diameter (A) | 15.88mm = 0.625 (5/8) inch |
|---|---|
| Outside Diameter (B) | 28.58mm = 1.125 (1-1/8) inch |
| Width (C) | 38.1mm = 1.5 (1-1/2) inch |
| Nominal Bore Size | 5/8 inch |
| Effective Surface Area (Square Inch) | 0.98 inch |
| Max Static Load | 13.07kN |
| Weight | 0.041kg |
