SKU: FL64-PBC

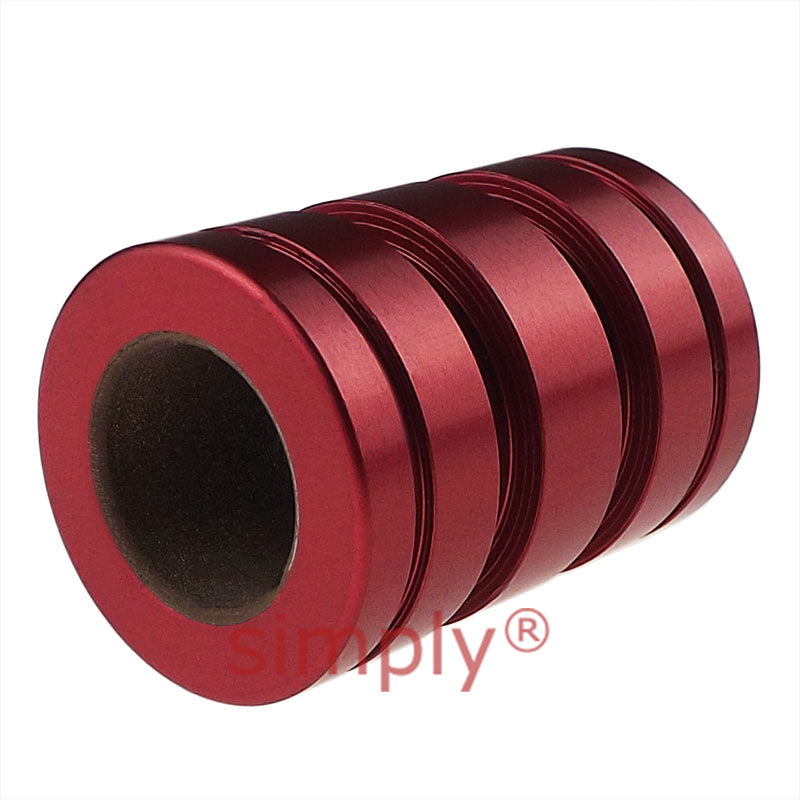

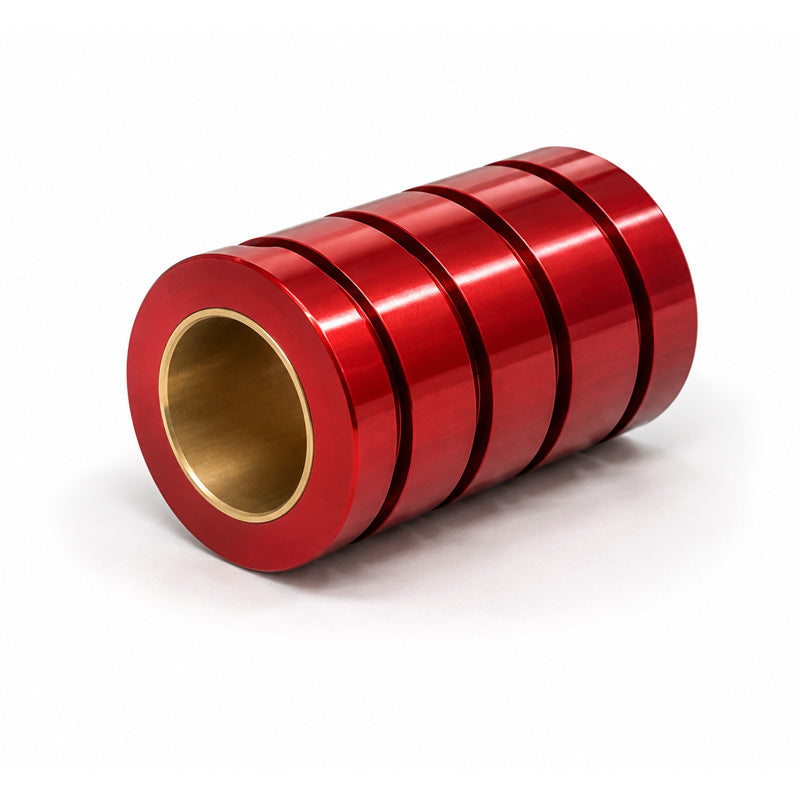

PBC FL 64 Imperial Closed Precision Linear Plain Bearing with Frelon Gold 4x6x8 inch (Allow 2-3 Days)
PBC FL 64 Imperial Closed Precision Linear Plain Bearing with Frelon Gold 4x6x8 inch (Allow 2-3 Days)
Regular price
$1,563.07
ex VAT
Regular price
Sale price
$1,563.07
ex VAT
In stock
Price Break
10+
$1,391.13
19+
$1,312.98
29+
$1,297.35
39+
$1,281.72
49+
$1,266.09
74+
$1,250.46
99+
$1,172.30
199+
$1,156.67
249+
$1,141.04
499+
$1,125.41
999+
$1,094.15
Couldn't load pickup availability
Description
Description
PBC FL Imperial Closed Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 101.6mm = 4 inch
- Outside Diameter:
- 152.4mm = 6 inch
- Length:
- 203.2mm = 8 inch
Technical
Technical
| Inside Diameter | 101.6mm = 4 inch |
|---|---|
| Outside Diameter | 152.4mm = 6 inch |
| Width | 203.2mm = 8 inch |
| Nominal Bore Size | 4 inch |
| Effective Surface Area (Square Inch) | 33.5kg |
| Max Static Load | 446.67kN |
| Weight | 5.368kg |
