SKU: FL24-PBC

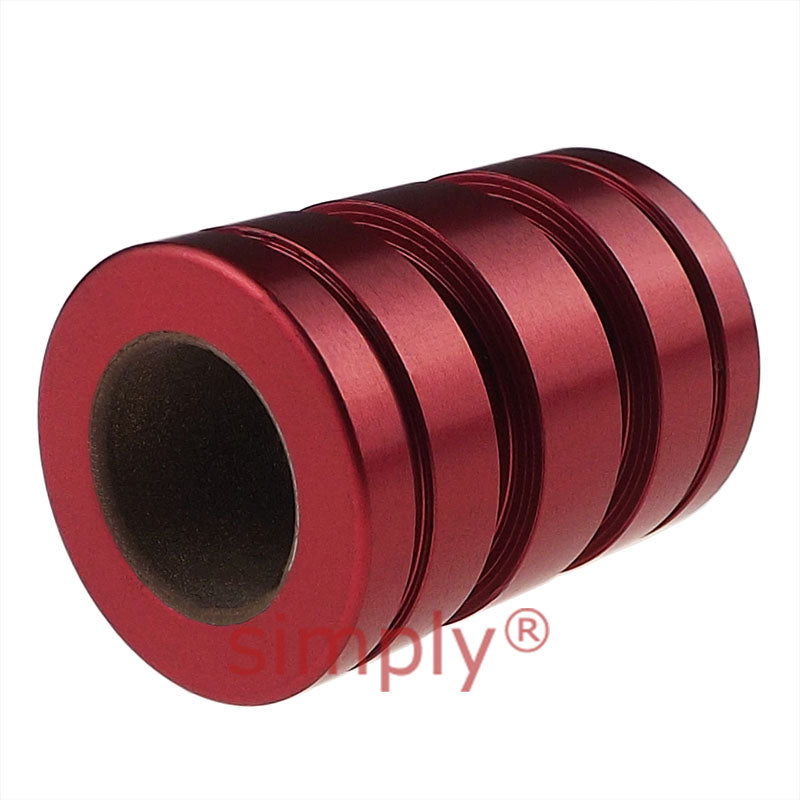

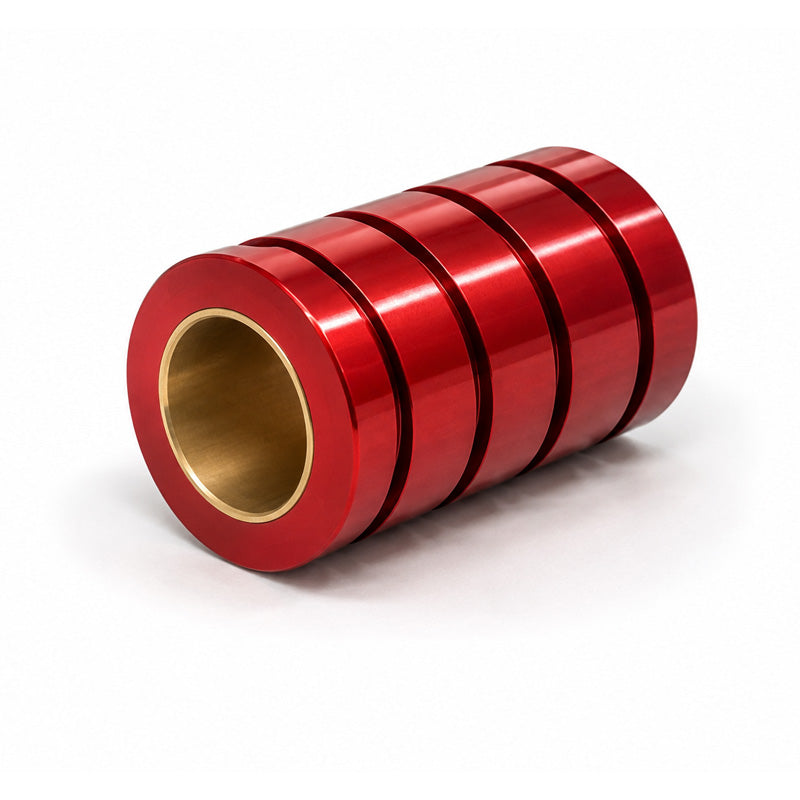

PBC FL 24 Imperial Closed Precision Linear Plain Bearing with Frelon Gold 1.5x2.375x3 inch (Allow 2-3 Days)
PBC FL 24 Imperial Closed Precision Linear Plain Bearing with Frelon Gold 1.5x2.375x3 inch (Allow 2-3 Days)
Regular price
$223.22
ex VAT
Regular price
Sale price
$223.22
ex VAT
In stock
Price Break
10+
$198.67
19+
$187.50
29+
$185.27
39+
$183.04
49+
$180.81
74+
$178.58
99+
$167.42
199+
$165.18
249+
$162.95
499+
$160.72
999+
$156.25
Couldn't load pickup availability
Description
Description
PBC FL Imperial Closed Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
- Brand / Quality:
- PBC - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Length:
- 76.2mm = 3 inch
Technical
Technical
| Inside Diameter | 38.1mm = 1.5 (1-1/2) inch |
|---|---|
| Outside Diameter | 60.33mm = 2.375 (2-3/8) inch |
| Width | 76.2mm = 3 inch |
| Nominal Bore Size | 1-1/2 inch |
| Effective Surface Area (Square Inch) | 4.7kg |
| Max Static Load | 62.67kN |
| Weight | 0.329kg |
