SKU: FC60-RHP

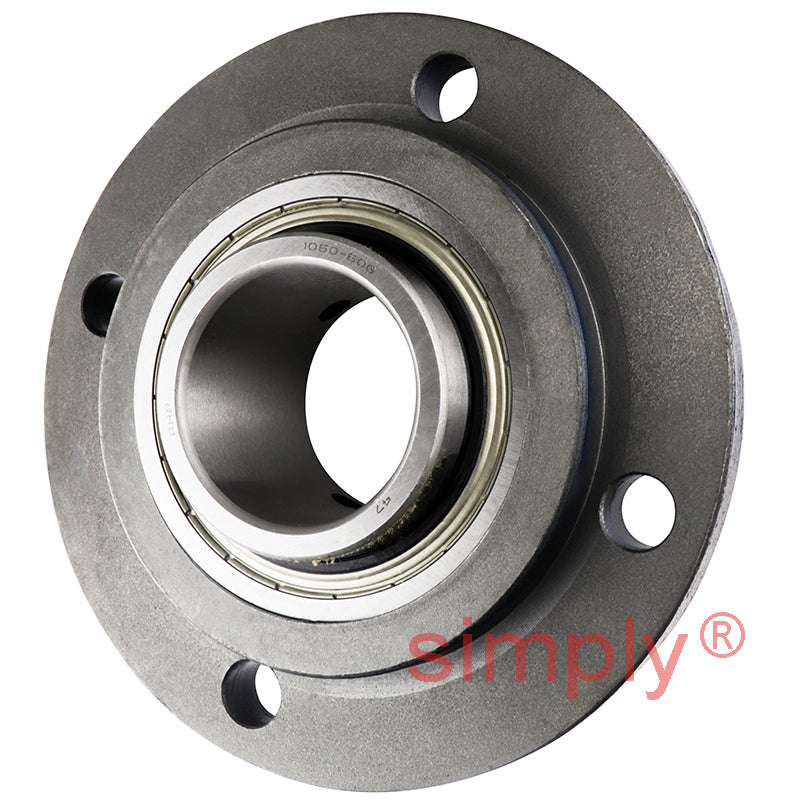

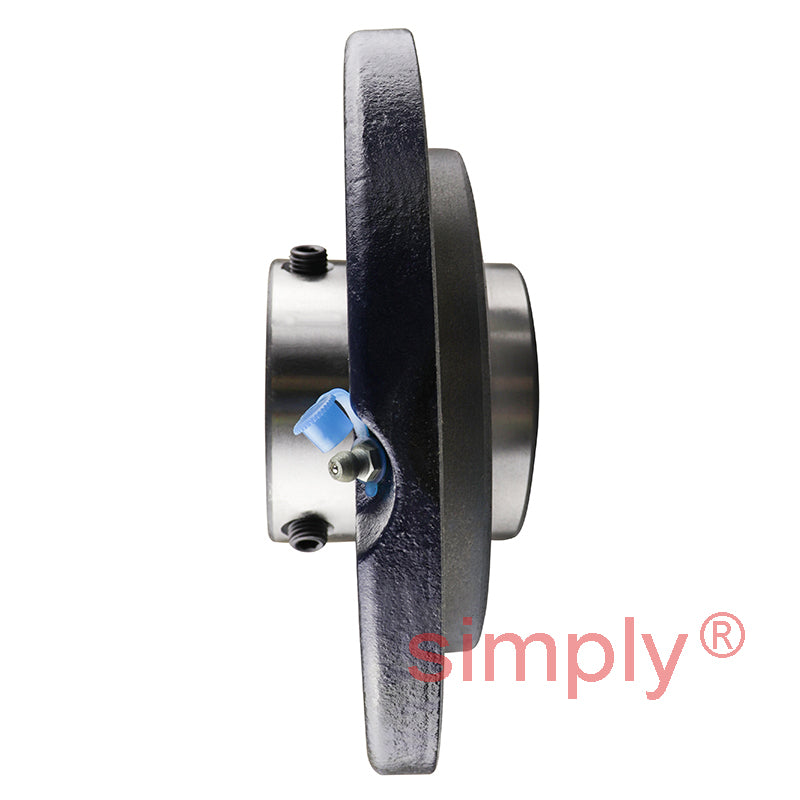

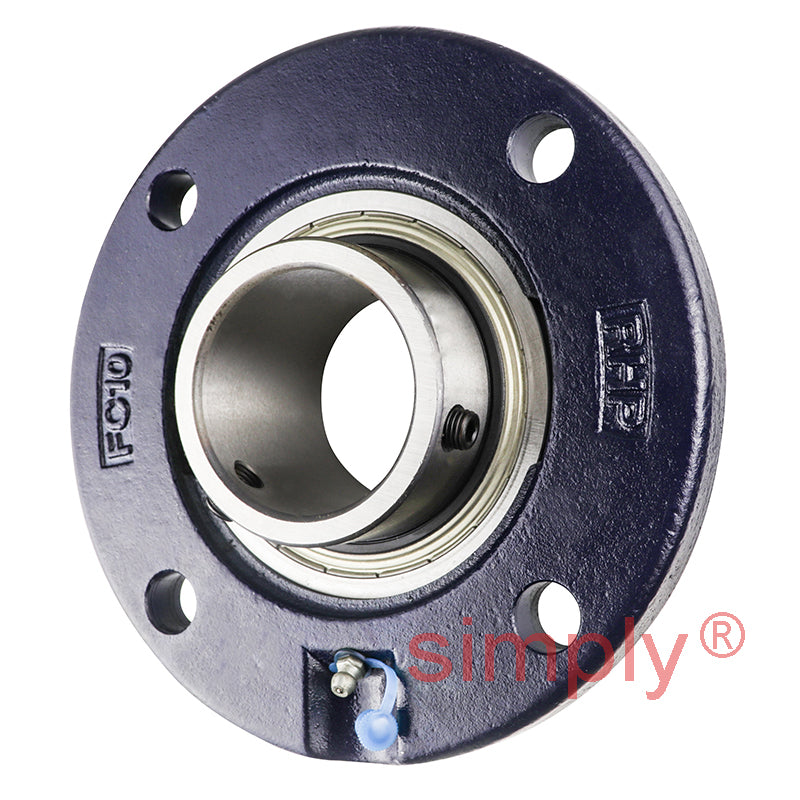

RHP FC60-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert
RHP FC60-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert
Regular price
$286.01
ex VAT
Regular price
Sale price
$286.01
ex VAT
In stock
Price Break
10+
$254.55
19+
$240.25
29+
$237.39
39+
$234.53
49+
$231.67
74+
$228.81
99+
$214.51
199+
$211.65
249+
$208.79
499+
$205.93
999+
$200.21
Couldn't load pickup availability
Description
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 60mm
- Style:
- FC
- Pitch Circle Diameter:
- 160mm
Technical
Technical
| Bore | 60mm |
|---|---|
| L | 195mm |
| H | 135mm |
| J | 160mm |
| G | 16mm |
| A | 29mm |
| A1 | 38.65mm |
| A5 | 16mm |
| B | 65.07mm |
| s | 25.45mm |
| d1 | 75.34mm |
| Dynamic load | 48000 N |
| Static load | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 4.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-60G+insonly">1060-60G Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
