SKU: FC45-RHP

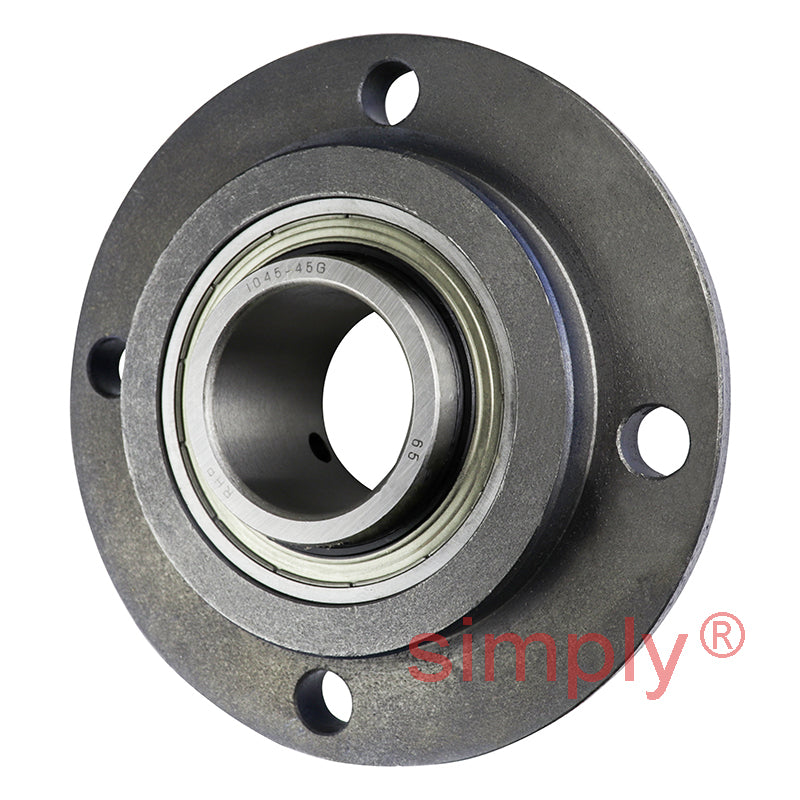

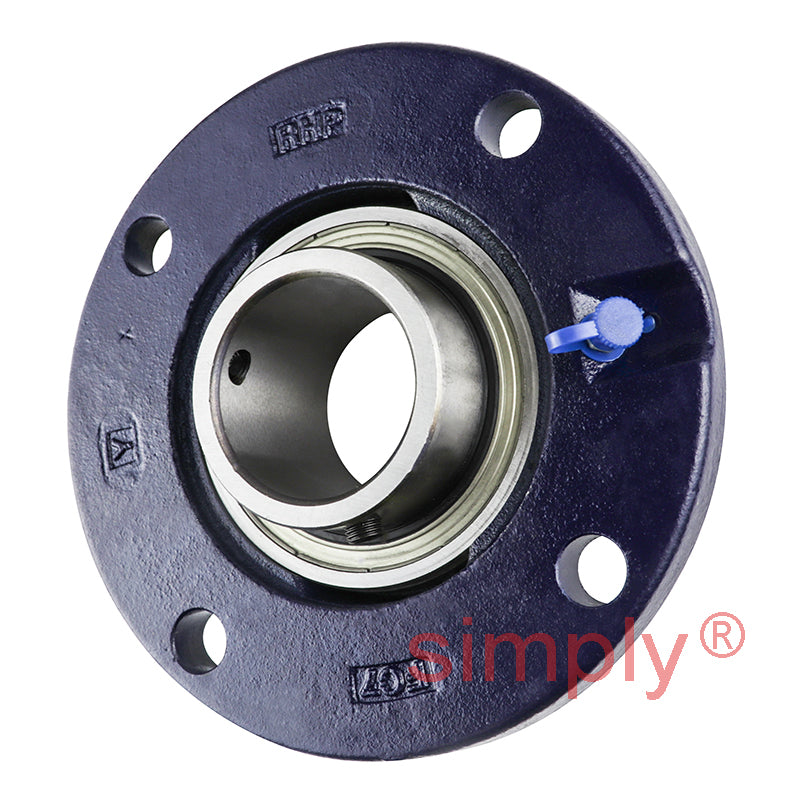

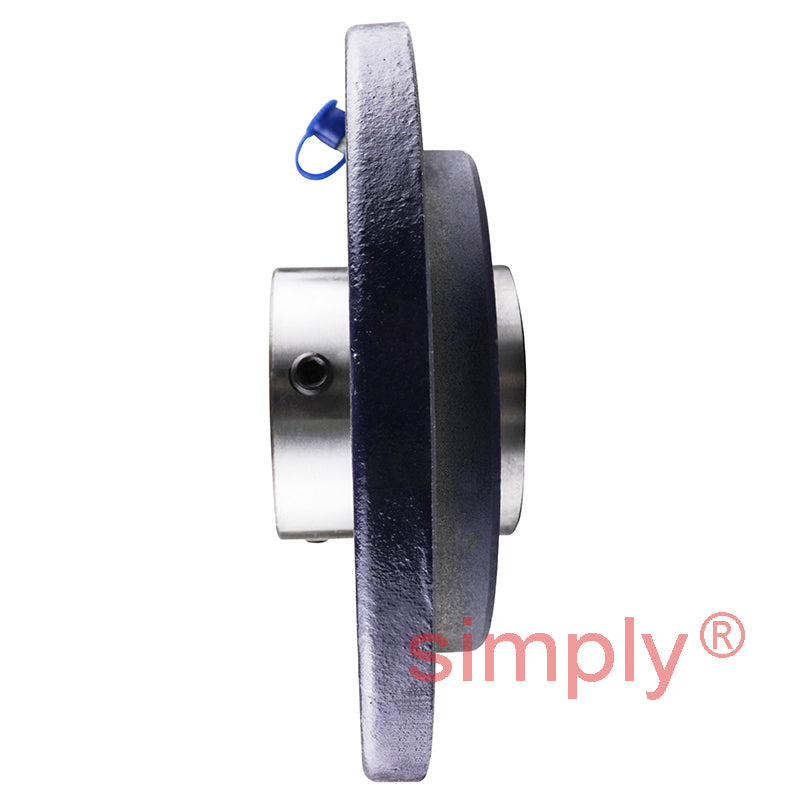

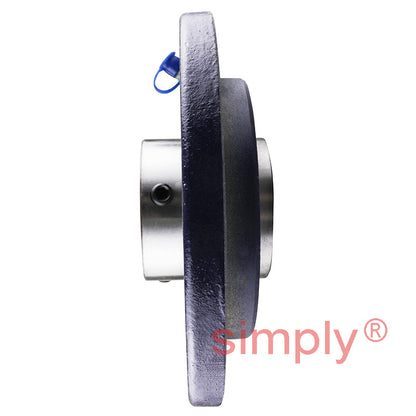

RHP FC45-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
RHP FC45-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
Regular price
$140.12
ex VAT
Regular price
Sale price
$140.12
ex VAT
In stock
Price Break
10+
$124.71
19+
$117.70
29+
$116.30
39+
$114.90
49+
$113.50
74+
$112.10
99+
$105.09
199+
$103.69
249+
$102.29
499+
$100.89
999+
$98.08
Couldn't load pickup availability
Description
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Style:
- FC
- Pitch Circle Diameter:
- 130mm
Technical
Technical
| Bore | 45mm |
|---|---|
| L | 155mm |
| H | 105mm |
| J | 130mm |
| G | 12mm |
| A | 25mm |
| A1 | 28.18mm |
| A5 | 12mm |
| B | 49.23mm |
| s | 19.1mm |
| d1 | 57.3mm |
| Dynamic load | 32500 N |
| Static load | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-45G+insonly">1045-45G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
