SKU: FC40EC-RHP

RHP FC40EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert

RHP FC40EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
$145.80 ex VAT
$145.80 ex VAT
Sale Sold out

In stock

Price Break
10+ $129.76
19+ $122.47
29+ $121.01
39+ $119.56
49+ $118.10
74+ $116.64
99+ $109.35
199+ $107.89
249+ $106.43
499+ $104.98
999+ $102.06
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

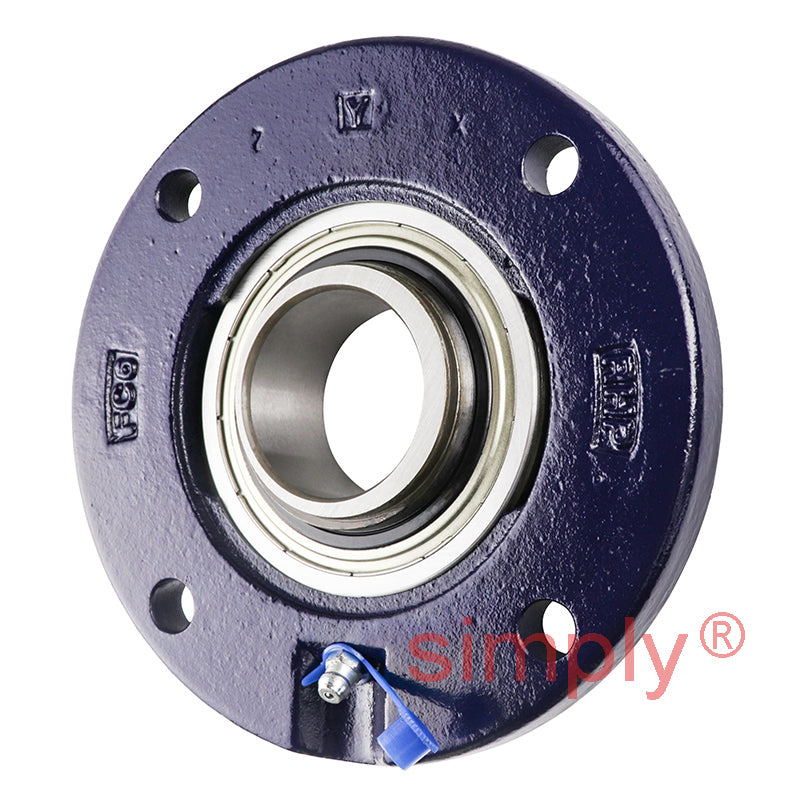

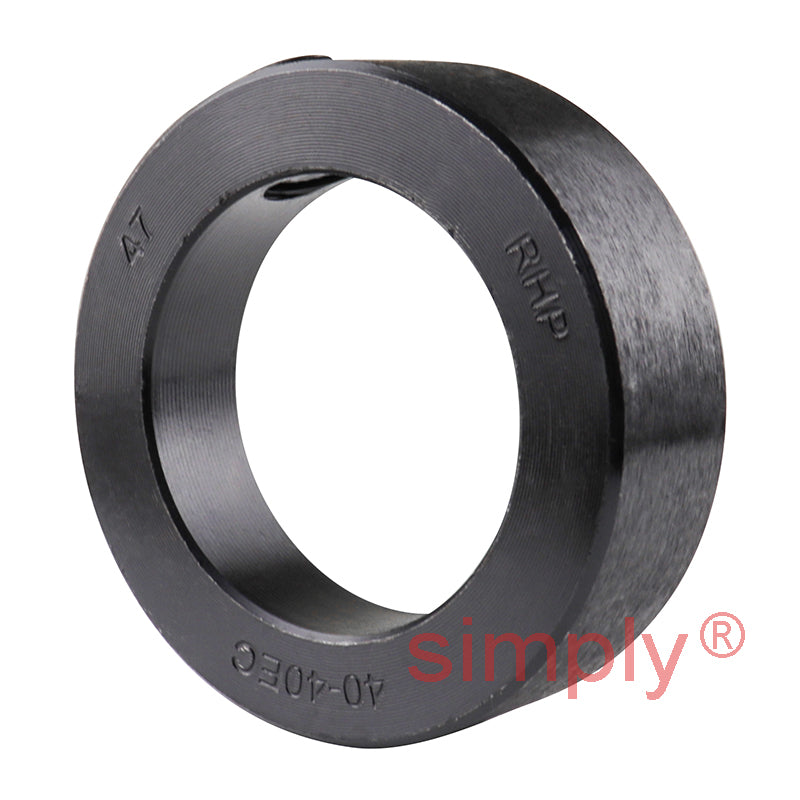

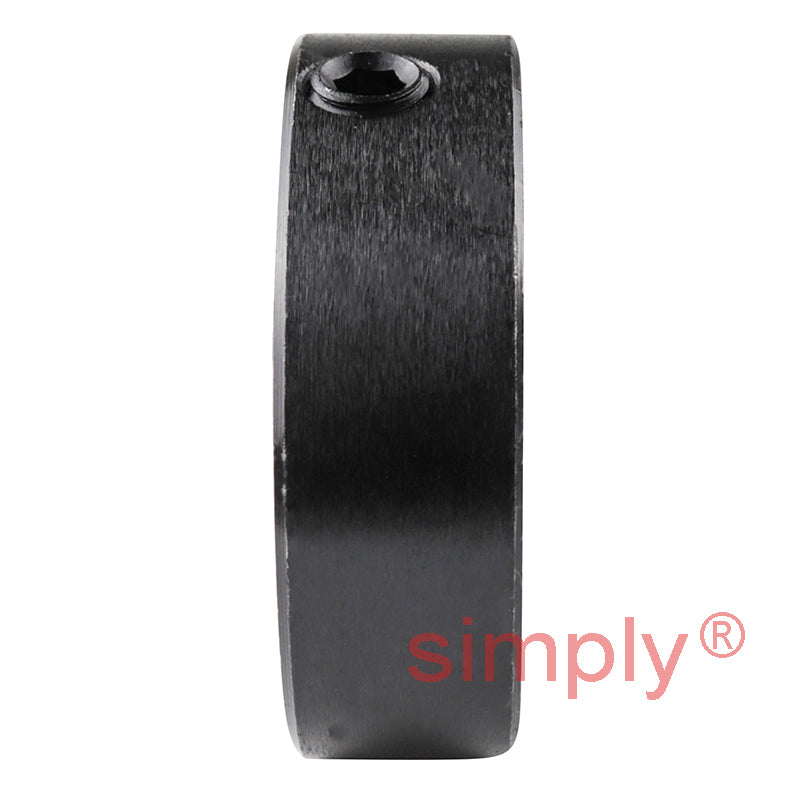

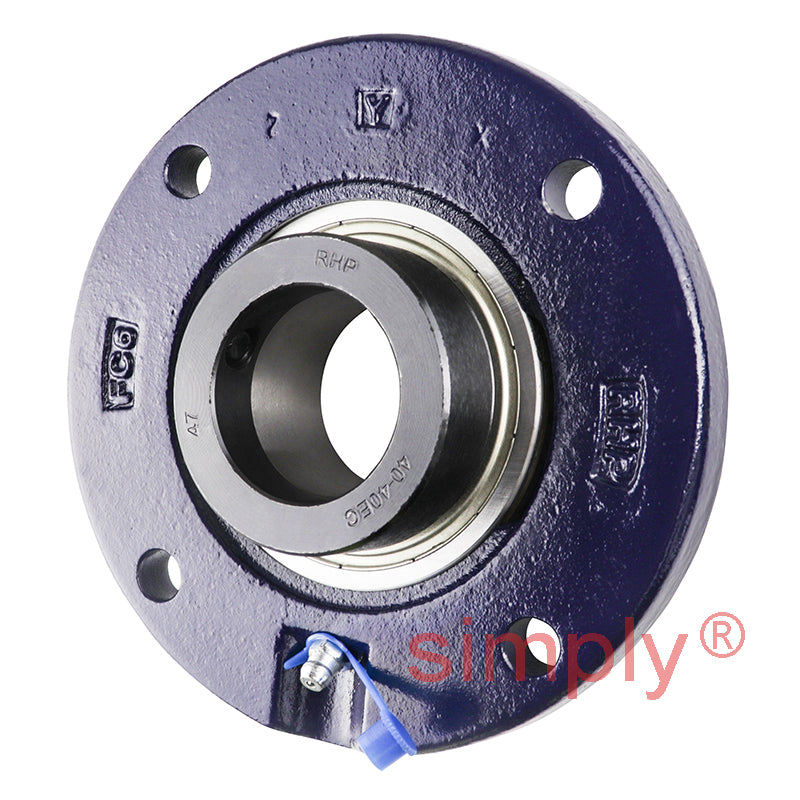

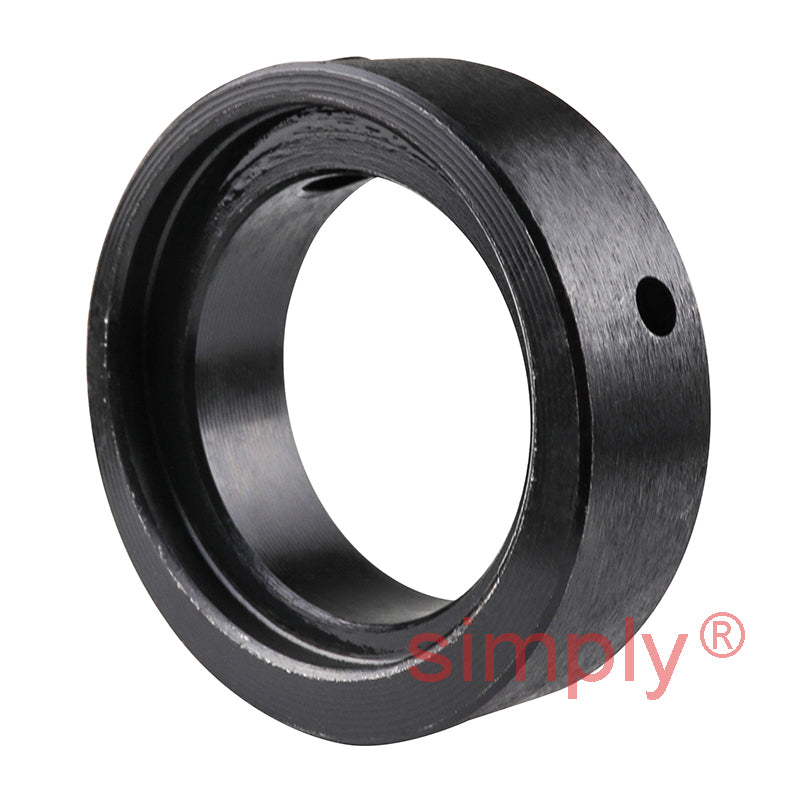

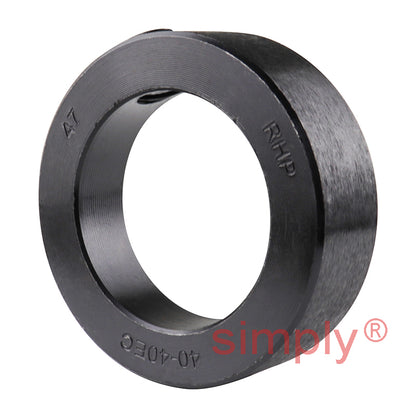

RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, eccentric collar fixing, flat back insert
Brand / Quality:
RHP - High Quality
Inside Diameter:
40mm
Style:
FC
Pitch Circle Diameter:
120mm

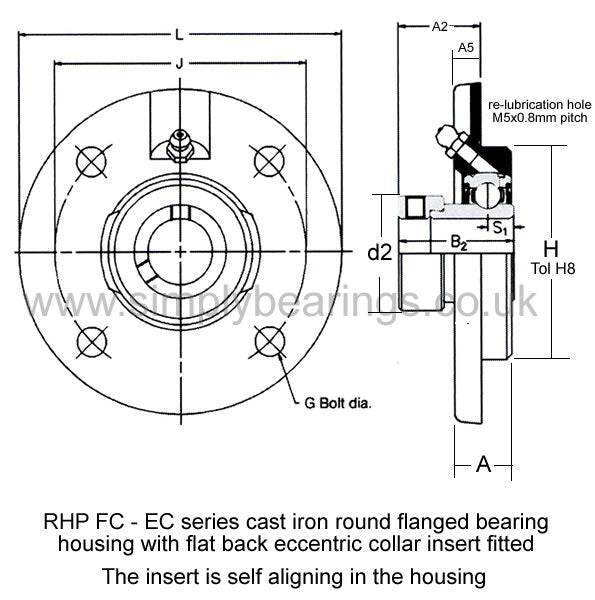

Technical
Bore 40mm
L 145mm
H 100mm
J 120mm
G 10mm
A 23mm
A2 31.59mm
A5 11.5mm
B2 43.64mm
s2 21.46mm
d2 60.3mm
Dynamic load 32500 N
Static load 19900 N
Rec max speed 4000 rpm
Weight 1.8 kg
Insert <a href="advanced_search_result.php?keywords=1240-40ECG+insonly">1240-40ECG Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
