SKU: FC35EC-RHP

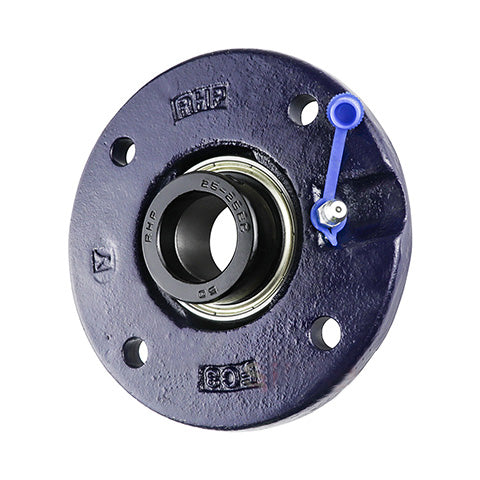

RHP FC35EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert

RHP FC35EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
Regular price $85.57 ex VAT
Regular price Sale price $85.57 ex VAT
Sale Sold out

In stock

Price Break
10+ $40.41
20+ $38.14
30+ $37.69
40+ $37.24
50+ $36.78
75+ $36.33
100+ $34.06
200+ $33.60
250+ $33.15
500+ $32.70
1000+ $31.79
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 35mm
L 135mm
H 90mm
J 110mm
G 10mm
A 20.5mm
A2 28.33mm
A5 10mm
B2 38.88mm
s2 18.89mm
d2 55.58mm
Dynamic load 25700 N
Static load 15300 N
Rec max speed 4500 rpm
Weight 1.5 kg
Insert <a href="advanced_search_result.php?keywords=1235-35ECG+insonly">1235-35ECG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
