• RHP FC20A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
  • RHP FC20A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
  • RHP FC20A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
1 3

SKU: FC20A-RHP

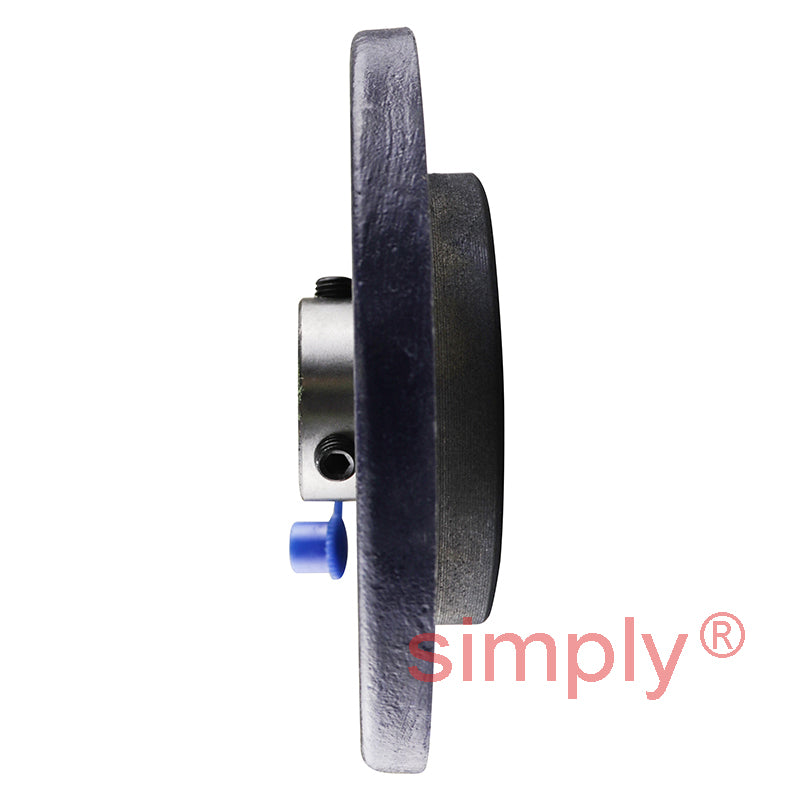

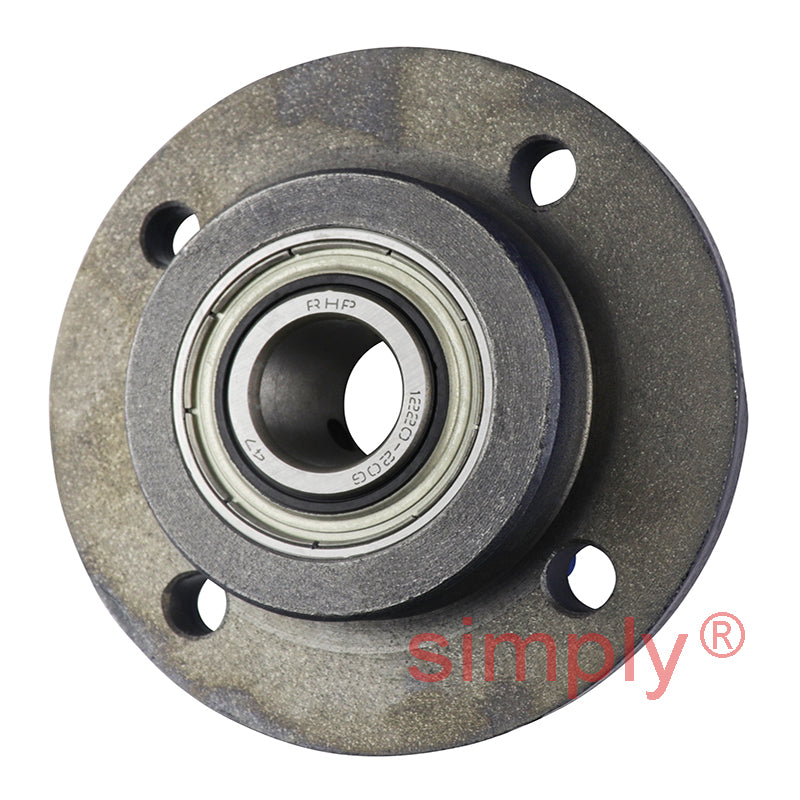

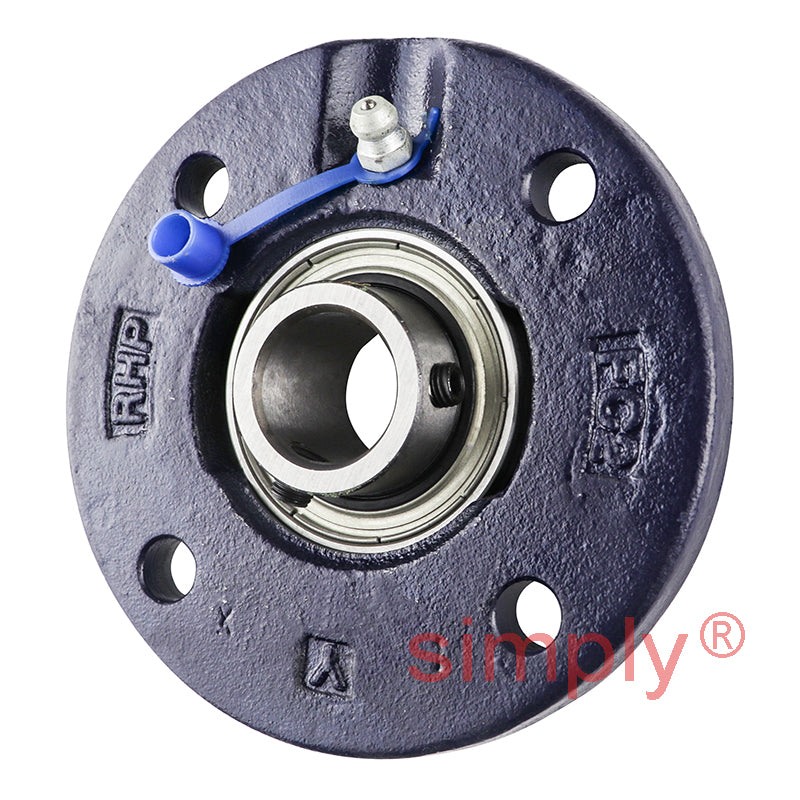

RHP FC20A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert

RHP FC20A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
$67.26 ex VAT
$67.26 ex VAT
Sale Sold out

In stock

Price Break
10+ $59.86
19+ $56.50
29+ $55.83
39+ $55.15
49+ $54.48
74+ $53.81
99+ $50.45
199+ $49.77
249+ $49.10
499+ $48.43
999+ $47.08
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP FC A Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, flat back insert

Brand / Quality:
RHP - High Quality
Inside Diameter:
20mm
Style:
FC
Pitch Circle Diameter:
78mm

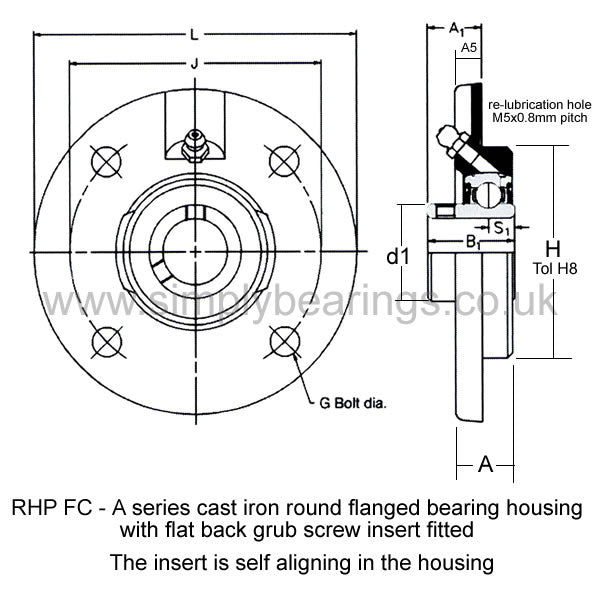

Technical
Bore 20mm
L 100mm
H 62mm
J 78mm
G 8mm
A 17mm
A1 16.29mm
A5 8mm
B1 25.77mm
s1 7.56mm
d1 28.5mm
Dynamic load 12800 N
Static load 6650 N
Rec max speed 6700 rpm
Weight 0.7 kg
Insert <a href="advanced_search_result.php?keywords=1220-20AG+insonly">1220-20AG Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
