SKU: FBL-M16S-DUN

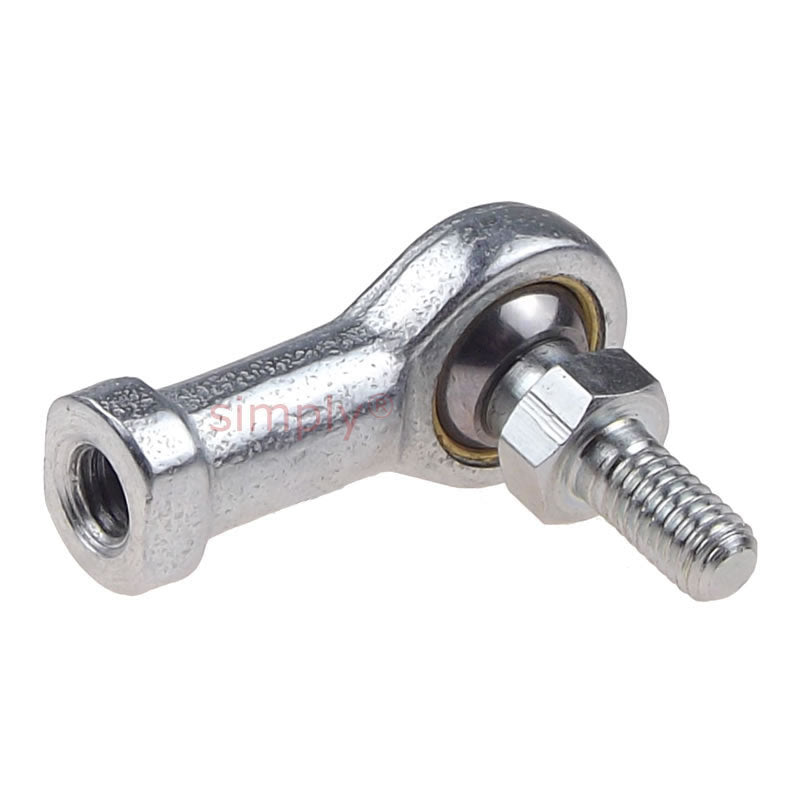

Dunlop FBL-M16S Left Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M16x2 Thread - Allow 7-10 Days
Dunlop FBL-M16S Left Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M16x2 Thread - Allow 7-10 Days
Regular price
$49.46
ex VAT
Regular price
Sale price
$49.46
ex VAT
Equivalent to: PHS16L+STUD
In stock
Price Break
10+
$44.02
19+
$41.55
29+
$41.05
39+
$40.56
49+
$40.06
74+
$39.57
99+
$37.10
199+
$36.60
249+
$36.11
499+
$35.61
999+
$34.62
Couldn't load pickup availability
Description
Description
|
FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, extended wear life |
Equivalent: PHS16L+STUD
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- M16x2
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Material:
- Bronze Lined
Technical
Technical
| Stud size | M16 |
|---|---|
| Thread | M16x2 |
| A | 32mm |
| B | 32mm |
| C | 29mm |
| K | 24mm |
| Static load | 9000 N |
