SKU: FBL-M16CG-MB

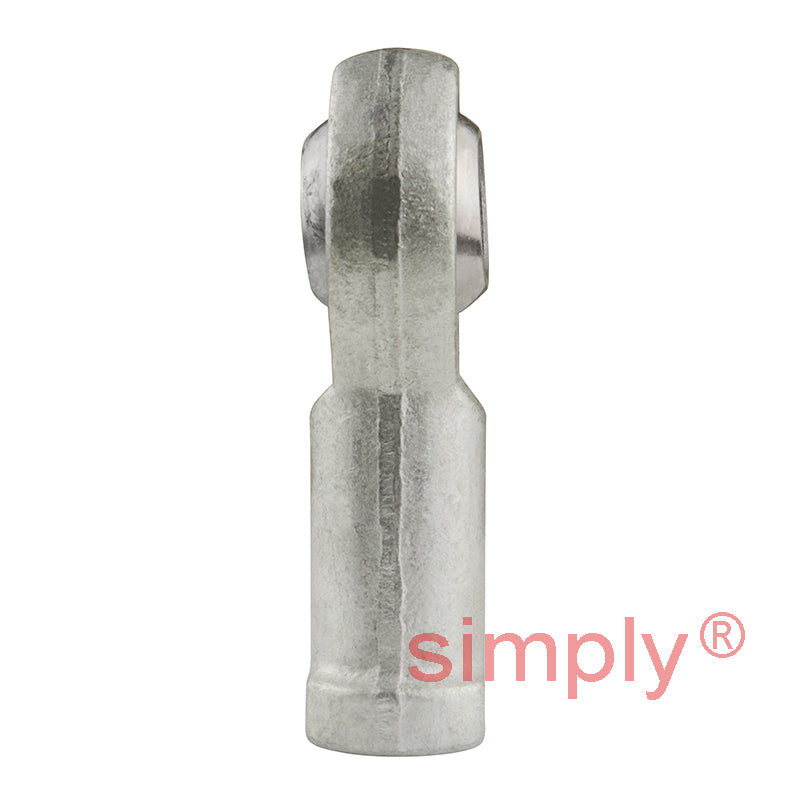

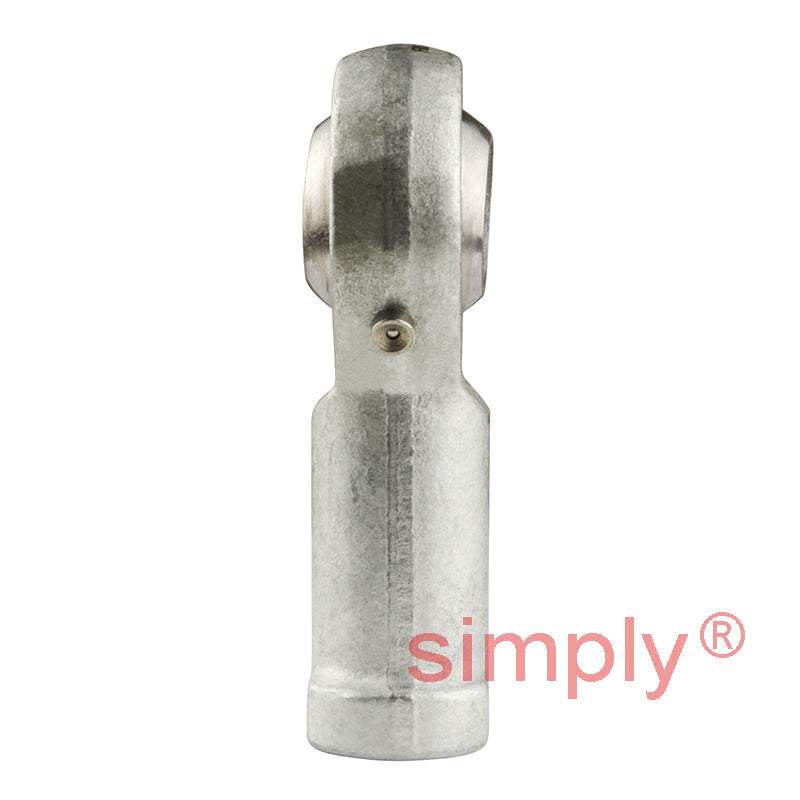

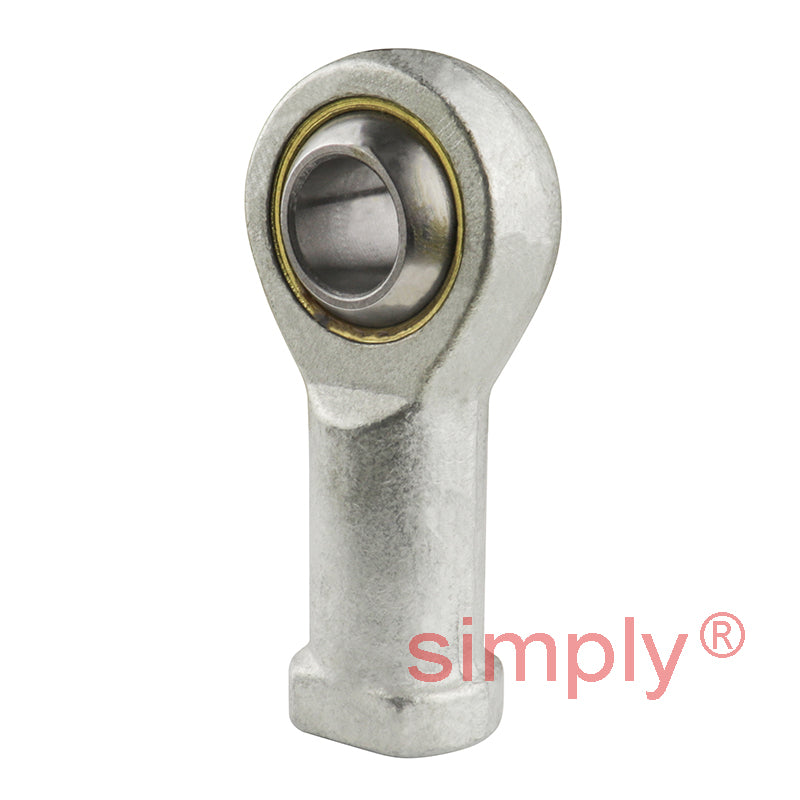

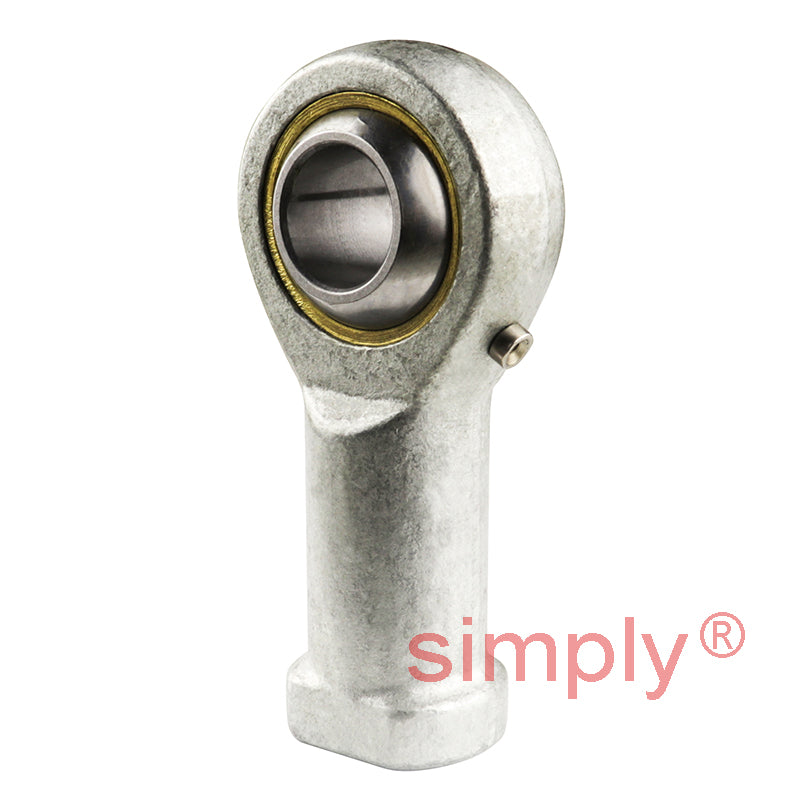

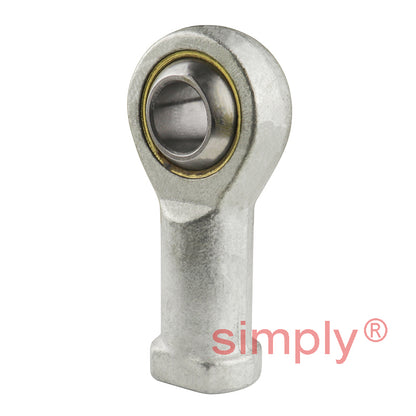

Branded FBL-16CG Left Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M16x1.5 Thread - Allow 7-10 Days
Branded FBL-16CG Left Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M16x1.5 Thread - Allow 7-10 Days
Regular price
$17.83
ex VAT
Regular price
Sale price
$17.83
ex VAT
In stock
Price Break
10+
$8.42
19+
$7.95
29+
$7.85
39+
$7.76
49+
$7.66
74+
$7.57
99+
$7.10
199+
$7.00
249+
$6.91
499+
$6.81
999+
$6.62
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M16x1.5
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Material:
- Bronze Lined
Technical
Technical
| Bore size | 16mm |
|---|---|
| Thread | M16x1.5 |
| W | 21mm |
| H | 15mm |
| D | 38mm |
| L1 | 64mm |
| L2 | 33mm |
| O | 19.3mm |
| AF | 22mm |
| Static load | 0.3713 N |
