SKU: FB-M16-MB

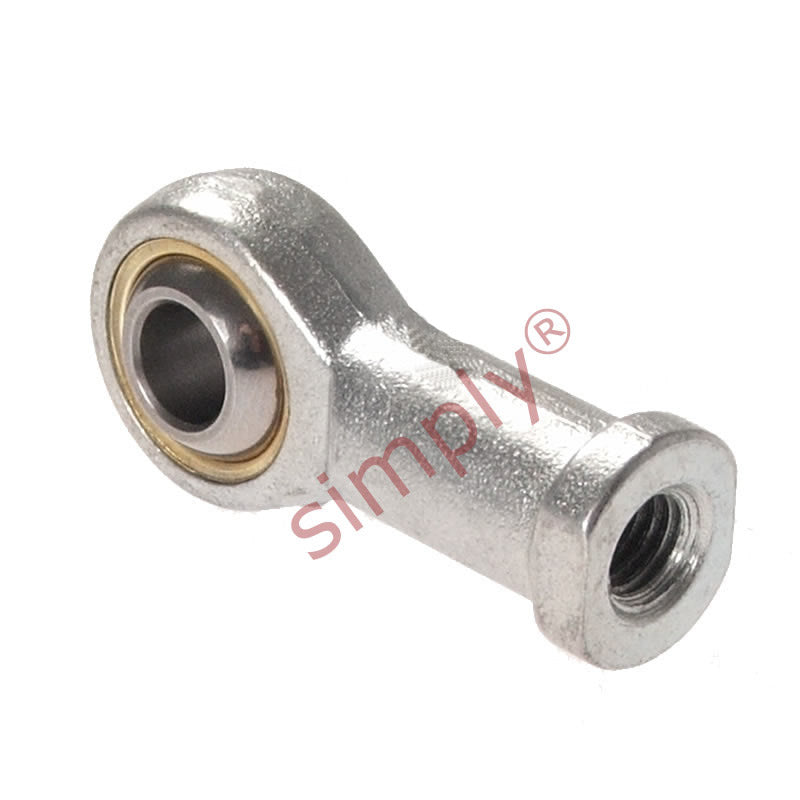

Branded FB-M16 Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M16x2 Thread
Branded FB-M16 Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M16x2 Thread
Regular price
$36.42
ex VAT
Regular price
Sale price
$36.42
ex VAT
Equivalent to: PHS16
In stock
Price Break
10+
$32.41
19+
$30.59
29+
$30.23
39+
$29.86
49+
$29.50
74+
$29.14
99+
$27.32
199+
$26.95
249+
$26.59
499+
$26.22
999+
$25.49
Couldn't load pickup availability
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
Equivalent: PHS16
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M16x2
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Liner Type:
- Bronze Lined

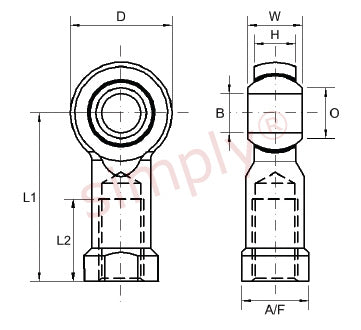

Technical
Technical
| Bore size | 16mm |
|---|---|
| Thread | M16x2 |
| W | 21mm |
| H | 15mm |
| D | 38mm |
| L1 | 64mm |
| L2 | 33mm |
| O | 19.3mm |
| AF | 24mm |
| Static load | 23700 N |
