SKU: FB-M12S-MB

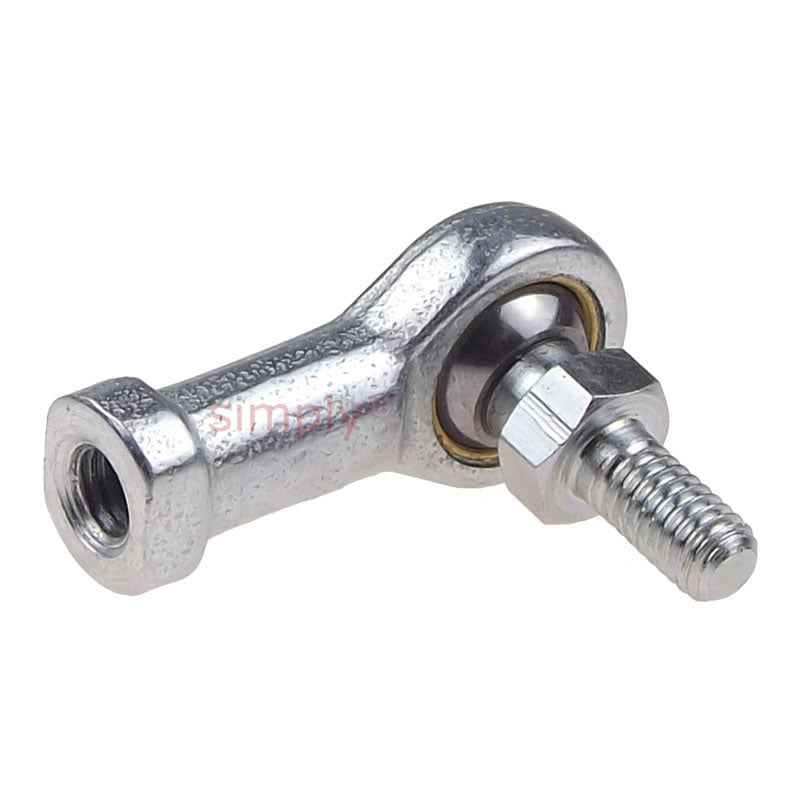

Branded FB-M12S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M12x1.75 Thread
Branded FB-M12S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M12x1.75 Thread
Regular price
$36.39
ex VAT
Regular price
Sale price
$36.39
ex VAT
Equivalent to: PHS12+STUD
In stock
Price Break
10+
$17.19
19+
$16.22
29+
$16.03
39+
$15.84
49+
$15.64
74+
$15.45
99+
$14.48
199+
$14.29
249+
$14.10
499+
$13.90
999+
$13.52
Description
Description
|
FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, extended wear life |
Equivalent: PHS12+STUD
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M12x1.75
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| Stud size | M12 |
|---|---|
| Thread | M12x1.75 |
| A | 24mm |
| B | 24mm |
| C | 21mm |
| K | 19mm |
| Static load | 5720 N |
