SKU: FB-M06S-MB

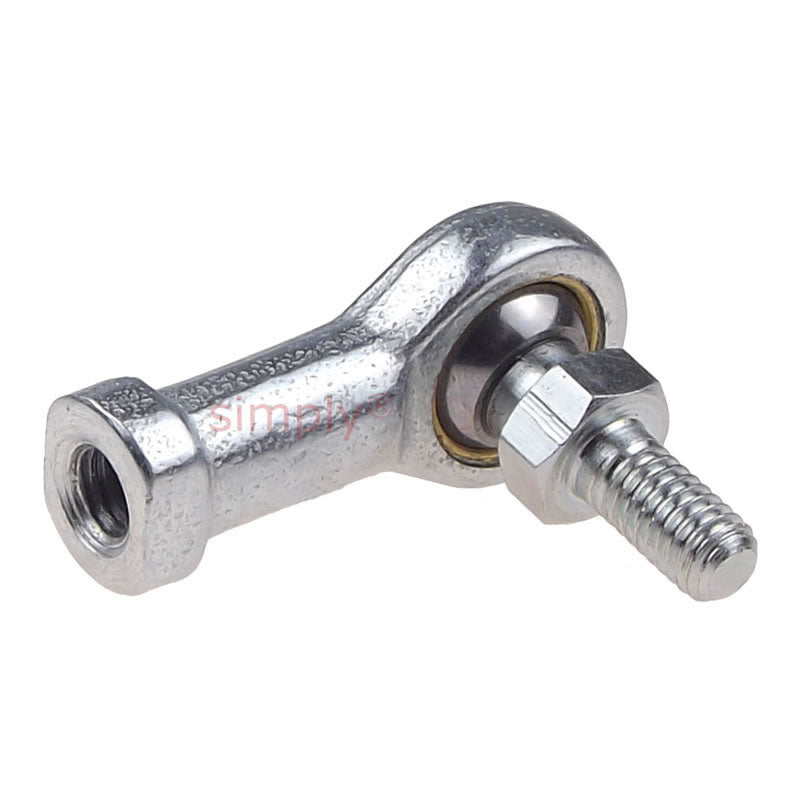

Branded FB-M06S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M6x1 Thread
Branded FB-M06S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M6x1 Thread
Regular price
$27.07
ex VAT
Regular price
Sale price
$27.07
ex VAT
Equivalent to: PHS6+STUD
In stock
Price Break
10+
$24.09
19+
$22.74
29+
$22.47
39+
$22.20
49+
$21.93
74+
$21.66
99+
$20.30
199+
$20.03
249+
$19.76
499+
$19.49
999+
$18.95
Couldn't load pickup availability
Share this product
Description
Description
|
FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, extended wear life |
Equivalent: PHS6+STUD
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M6x1
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Liner Type:
- Bronze Lined
Technical
Technical
| Stud size | M6 |
|---|---|
| Thread | M6x1 |
| A | 12mm |
| B | 12mm |
| C | 10mm |
| K | 10mm |
| Static load | 1930 N |
