SKU: FB-04PB-DUN

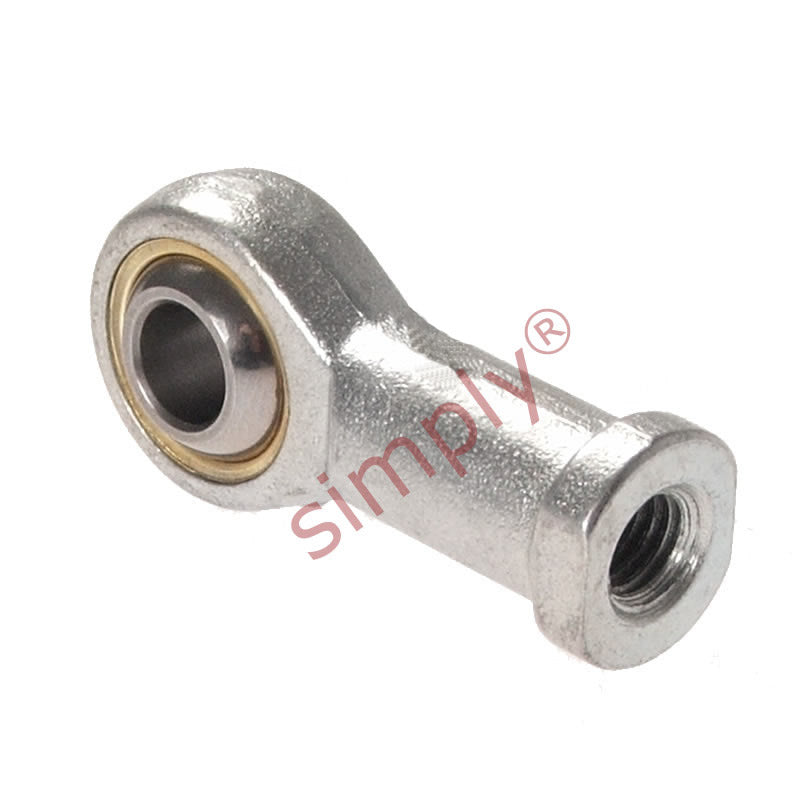

Dunlop FB-04PB Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 1/4 UNF Thread
Dunlop FB-04PB Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 1/4 UNF Thread
Regular price
$21.39
ex VAT
Regular price
Sale price
$21.39
ex VAT
In stock
Price Break
10+
$19.04
19+
$17.97
29+
$17.75
39+
$17.54
49+
$17.33
74+
$17.11
99+
$16.04
199+
$15.83
249+
$15.61
499+
$15.40
999+
$14.97
Couldn't load pickup availability
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- 1/4 UNF
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Liner Type:
- Bronze Lined
Technical
Technical
| Bore size | 1/4 inch |
|---|---|
| Thread | 1/4 UNF |
| W | 0.375 inch |
| H | 0.281 inch |
| D | 0.75 inch |
| L1 | 1.312 inch |
| L2 | 0.75 inch |
| O | 0.354 inch |
| AF | 0.375 inch |
| Static load | 6820 N |
