SKU: F208-FAG

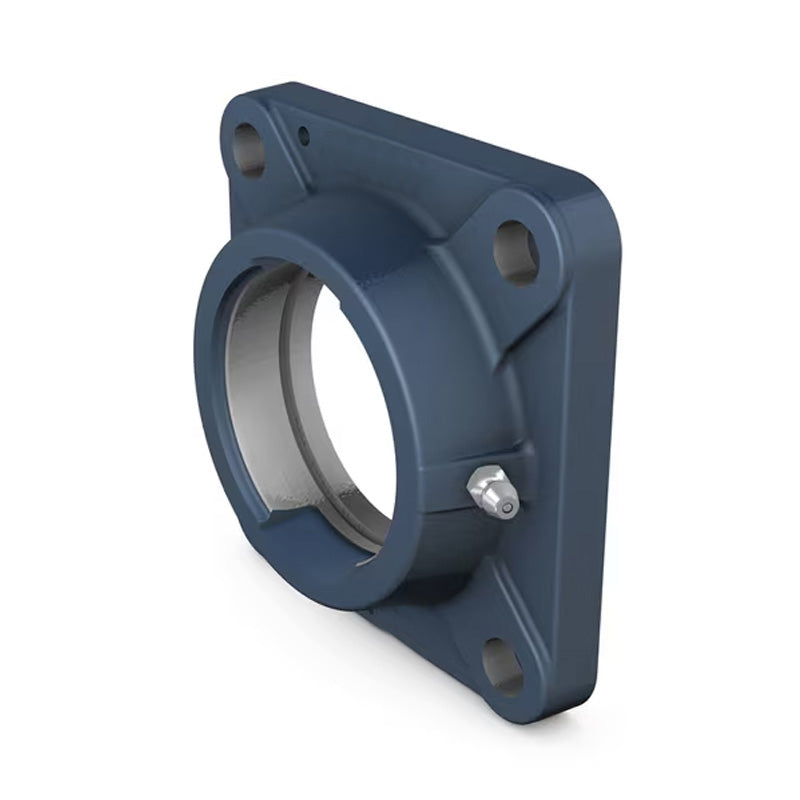

FAG F208 Four Bolt Cast Iron Square Flanged Housing (Insert not included)
FAG F208 Four Bolt Cast Iron Square Flanged Housing (Insert not included)
Regular price
$25.30
ex VAT
Regular price
Sale price
$25.30
ex VAT
In stock
Price Break
10+
$22.52
19+
$21.25
29+
$21.00
39+
$20.75
49+
$20.49
74+
$20.24
99+
$18.98
199+
$18.72
249+
$18.47
499+
$18.22
999+
$17.71
Couldn't load pickup availability
Description
Description
FAG F208 Four Bolt Square Housing Unit: This housing unit is not supplied with a bearing insert pre-installed. The inserts (available separately) can be installed into the housings and removed for future replacement as required.
Benefits: Cost effective housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- FAG - High Quality
- Style:
- F
- Bolt Hole Centres:
- 102mm

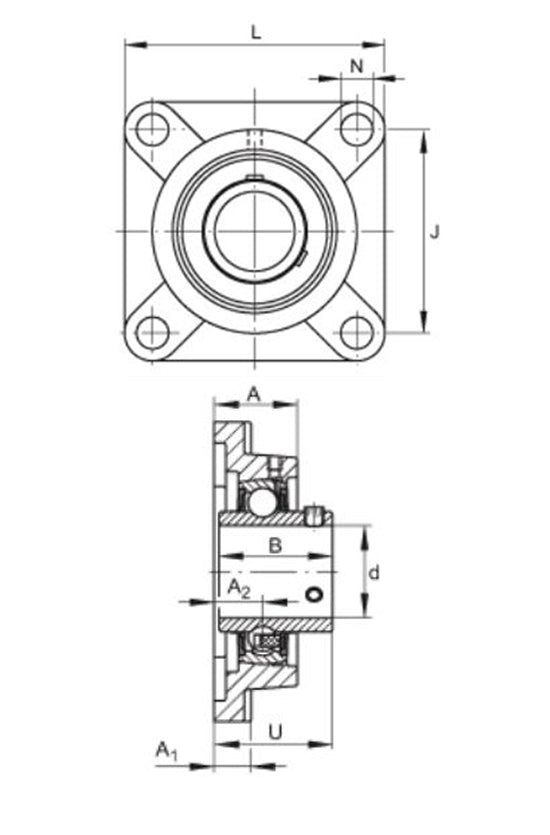

Technical
Technical
| d | 40mm |
|---|---|
| L | 130mm |
| U | 51.2mm |
| A | 36mm |
| A1 | 16mm |
| A2 | 21mm |
| B | 49.2mm |
| J | 102mm |
| N | 16mm |
| Weight | 1.91kg |
