SKU: EXFLE214-SNR

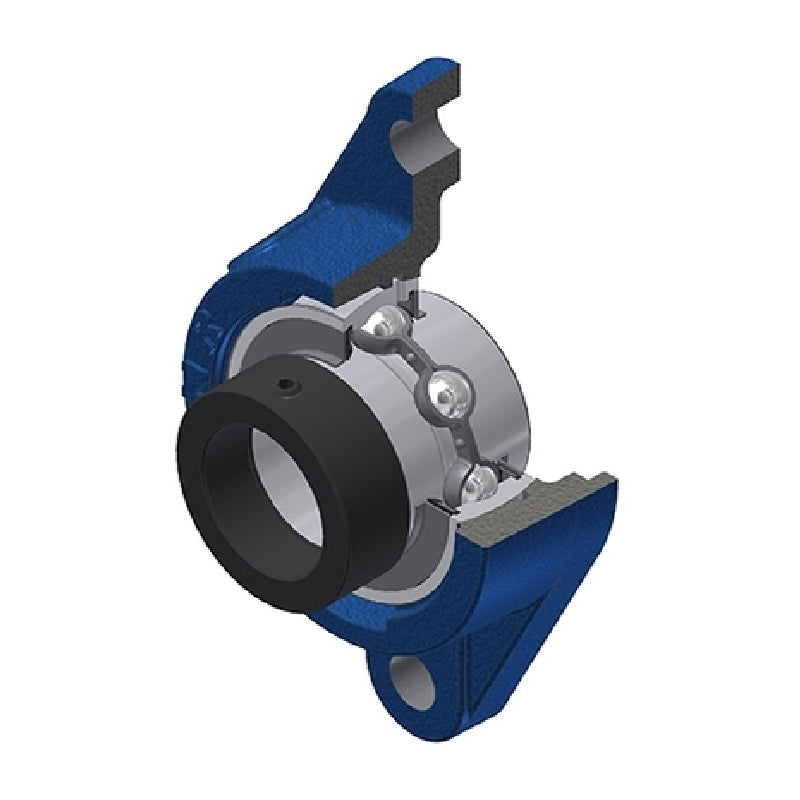

SNR EXFLE214 Metric Two Bolt Cast Iron Oval Housing with 70mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFLE214 Metric Two Bolt Cast Iron Oval Housing with 70mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
$212.02
ex VAT
Regular price
Sale price
$212.02
ex VAT
In stock
Price Break
10+
$188.70
19+
$178.10
29+
$175.98
39+
$173.86
49+
$171.74
74+
$169.62
99+
$159.02
199+
$156.89
249+
$154.77
499+
$152.65
999+
$148.41
Couldn't load pickup availability
Description
Description
EXFLE200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 70mm
- Style:
- EXFLE
- Bolt Hole Centres:
- 216mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 70mm |
| A | 57mm |
| A1 | 18mm |
| A2 | 89.6mm |
| B | 68.2mm |
| B1 | 85.7mm |
| d1 | 96.8mm |
| e | 38mm |
| H | 258mm |
| J | 216mm |
| L | 160mm |
| N | 21mm |
| S | 34.1mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 62 kN |
| Static load C0 | 45 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 5.97 kg |
