SKU: EXFE214-SNR

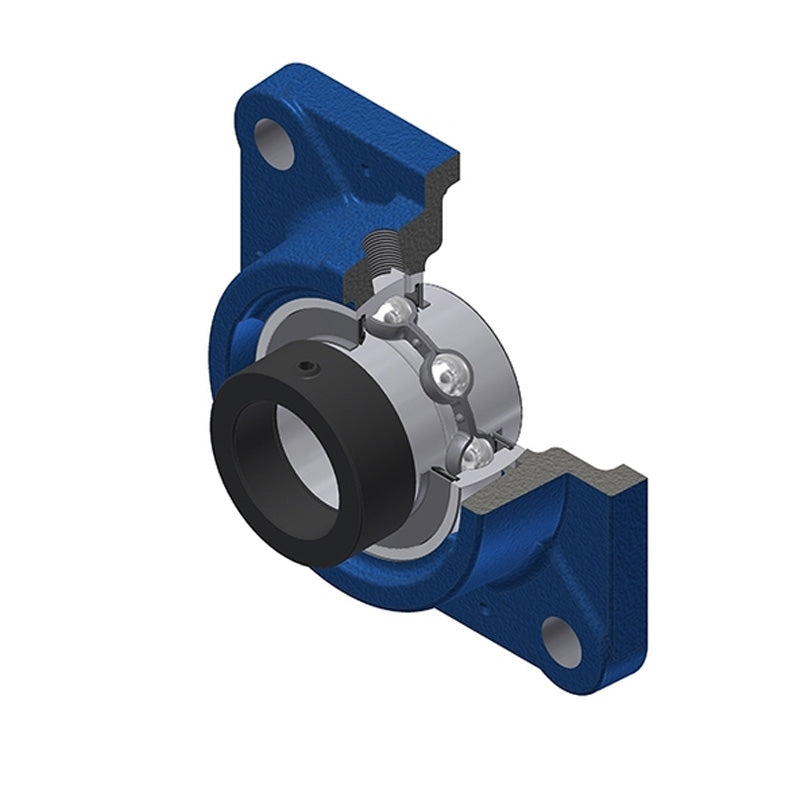

SNR EXFE214 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR EXFE214 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
$212.02
ex VAT
Regular price
Sale price
$212.02
ex VAT
In stock
Price Break
10+
$188.70
19+
$178.10
29+
$175.98
39+
$173.86
49+
$171.74
74+
$169.62
99+
$159.02
199+
$156.89
249+
$154.77
499+
$152.65
999+
$148.41
Couldn't load pickup availability
Description
Description
EXFE200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 70mm
- Style:
- EXFE
- Bolt Hole Centres:
- 150mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 70mm |
| A | 56mm |
| A1 | 18mm |
| A2 | 89.6mm |
| B | 68.2mm |
| B1 | 85.7mm |
| d1 | 96.8mm |
| e | 38mm |
| J | 150mm |
| L | 188mm |
| N | 18mm |
| S | 34.1mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 62 kN |
| Static load C0 | 45 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 6.65 kg |
