SKU: ESFD203-SNR

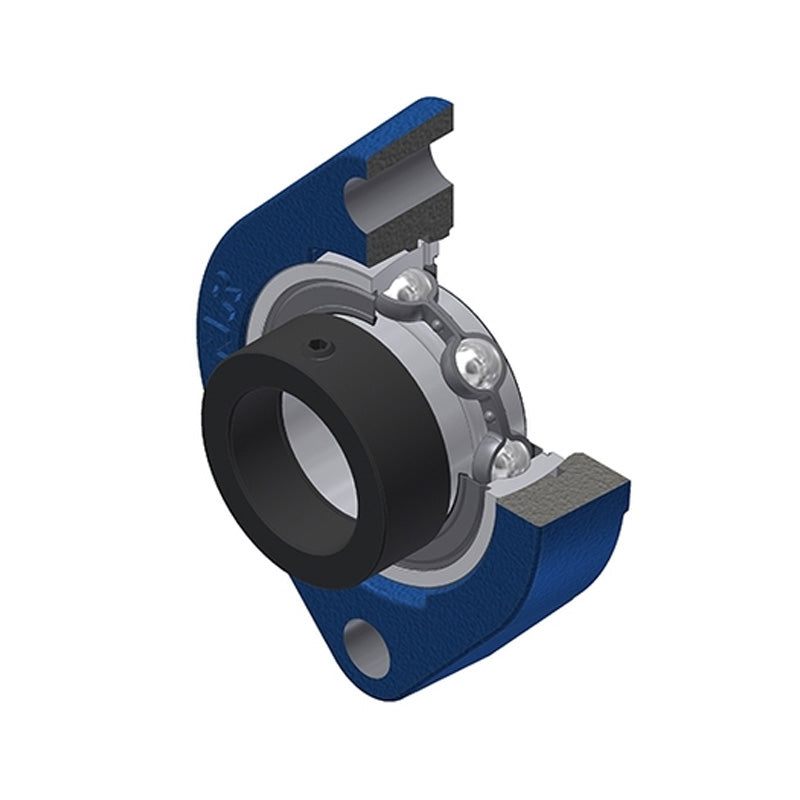

SNR ESFD203 Metric Two Bolt Cast Iron Oval Housing with 17mm Bore Eccentric Collar Insert - Allow 2-3 Days
SNR ESFD203 Metric Two Bolt Cast Iron Oval Housing with 17mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
$42.40
ex VAT
Regular price
Sale price
$42.40
ex VAT
In stock
Price Break
10+
$37.74
19+
$35.62
29+
$35.19
39+
$34.77
49+
$34.34
74+
$33.92
99+
$31.80
199+
$31.38
249+
$30.95
499+
$30.53
999+
$29.68
Couldn't load pickup availability
Description
Description
ESFD200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 17mm
- Style:
- ESFD
- Bolt Hole Centres:
- 63.5mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 17mm |
| A | 15mm |
| A2 | 30.5mm |
| B | 19.1mm |
| e | 8.4mm |
| H | 81mm |
| J | 63.5mm |
| L | 58.7mm |
| N | 6.5mm |
| S | 6.5mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 9.55 kN |
| Static load C0 | 4.78 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.33 kg |
