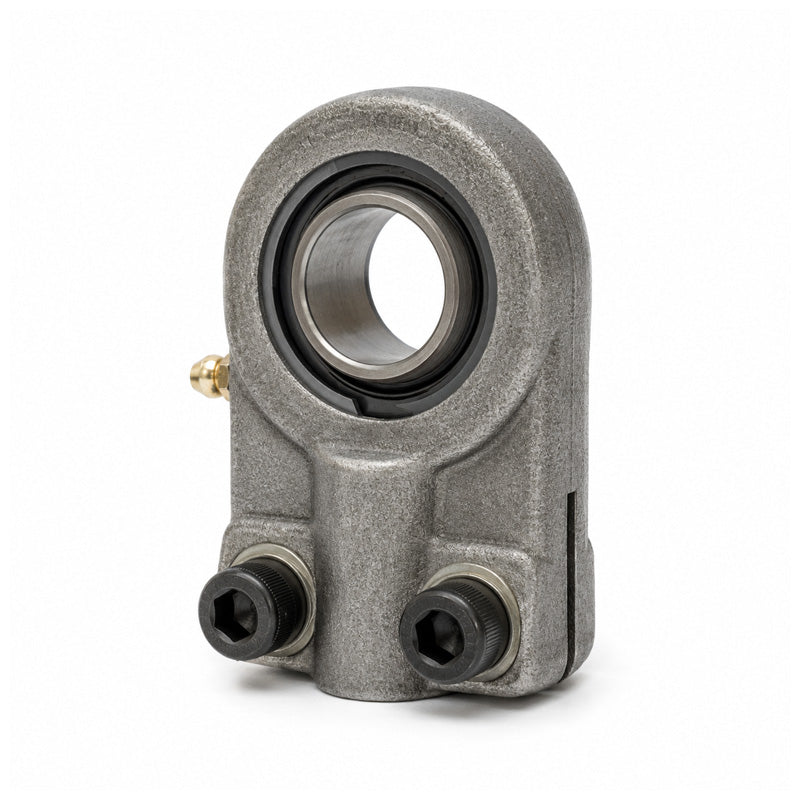

Durbal DGIHN-K32LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M27x2 Thread
Durbal DGIHN-K32LO Maintenance Required Hydraulic Rod End with Slot and Clamping Arrangement M27x2 Thread
Regular price
$129.01
ex VAT
Regular price
Sale price
$129.01
ex VAT
Equivalent to: GIHNK32LO SIQG32ES
In stock
Price Break
10+
$114.82
19+
$108.37
29+
$107.08
39+
$105.79
49+
$104.50
74+
$103.21
99+
$96.76
199+
$95.47
249+
$94.18
499+
$92.89
999+
$90.31
Couldn't load pickup availability
Description
Description
DURBAL Maintenance Required Female Hydraulic-Rod Ends with Pressed Spherical-Plain Bearing (Slot and Clamping Arrangement): Threaded female hydraulic rod end consisting of a forged, heat-treated steel housing with a steel, hardened, ground, phosphated outer ring with single split, oil groove and drill holes and a steel joint ball. Used for alternating radial loads. Female thread with slot, clamping arrangement. Temperature range -40 deg C to +200 deg C.
Equivalent: GIHNK32LO SIQG32ES
- Brand / Quality:
- Durbal - High Quality
- Thread Size:
- M27x2
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 32mm
Technical
Technical
| Thread Direction | Right |
|---|---|
| d | 32mm |
| d1 | 37mm |
| d2 | 71mm |
| d4 | 38mm |
| d5 | 66mm |
| dk | 44mm |
| G (Thread) | M27x2mm |
| B | 32mm |
| C1 | 28mm |
| C2 | 22mm |
| l3 | 37mm |
| l4 | 118.5mm |
| l7 | 32mm |
| h1 | 80mm |
| tilt angle α | 4 deg |
| weight | 1.2kg |
| basic load rating dyn C | 53.6 kN |
| basic load rating stat Co | 91.2 kN |
| radial clearance CN | 8-100 µm |
