SKU: CUC212

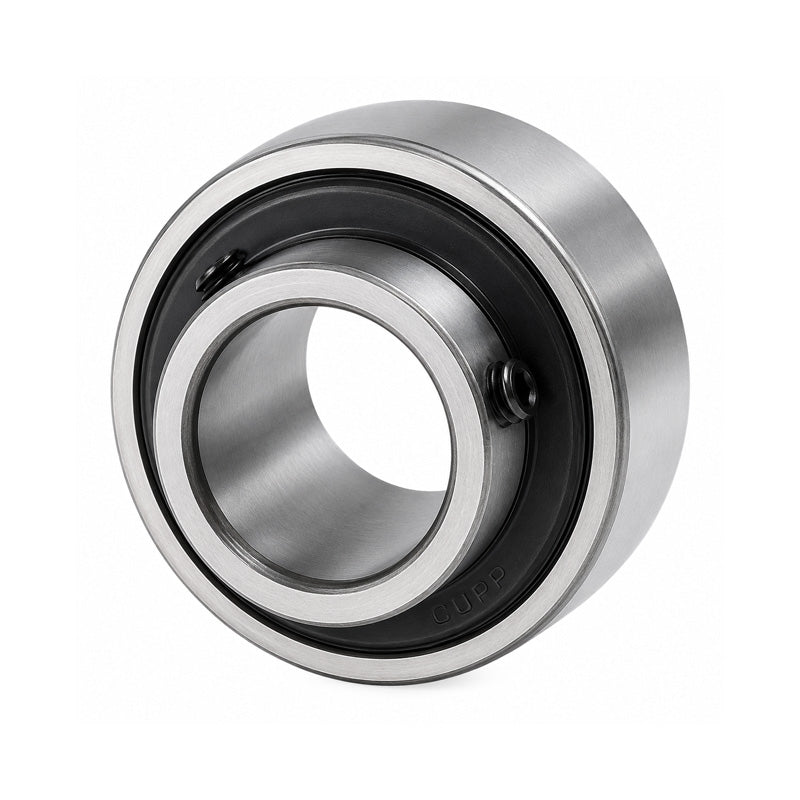

CUC212 Metric Cylindrical Bearing Insert with 60mm Bore 110mm Outside Dia
CUC212 Metric Cylindrical Bearing Insert with 60mm Bore 110mm Outside Dia
Regular price
$45.46
ex VAT
Regular price
Sale price
$45.46
ex VAT
Equivalent to: UR212 RB212
Low stock
Price Break
10+
$40.46
19+
$38.19
29+
$37.73
39+
$37.28
49+
$36.82
74+
$36.37
99+
$34.10
199+
$33.64
249+
$33.19
499+
$32.73
999+
$31.82
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR212 RB212
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| Bi | 65.1mm |
| Be | 27mm |
| N | 25.4mm |
| M | 39.7mm |
| G | 10mm |
| ds | M10x1, 3/8-24UNF |
| Dynamic Load | 47700 N |
| Static Load | 32900 N |
| Weight | 1.54 kg |
