SKU: CUC210

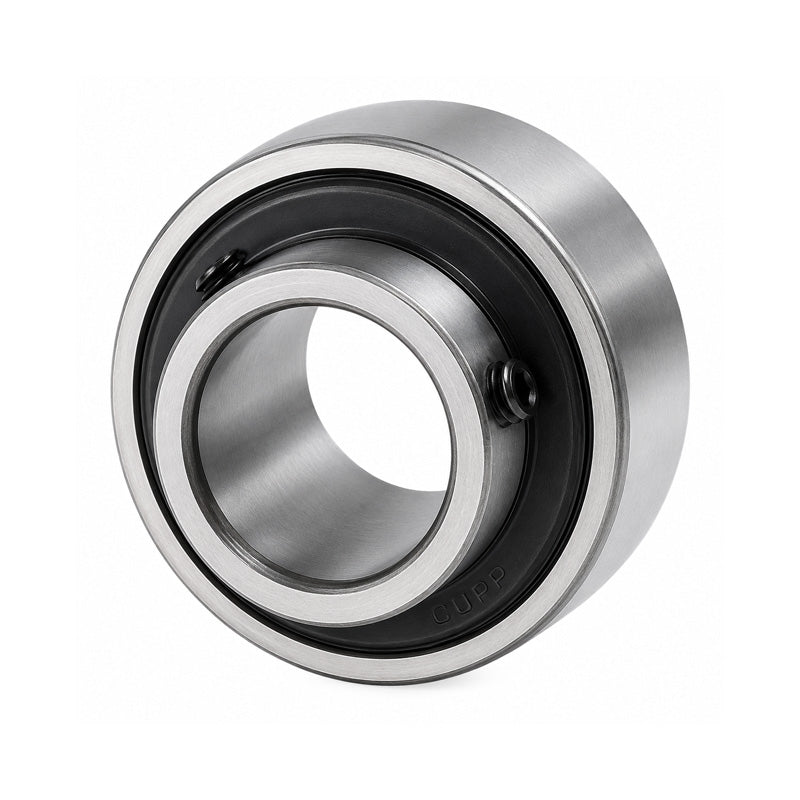

CUC210 Metric Cylindrical Bearing Insert with 50mm Bore 90mm Outside Dia - Allow 2-3 Days
CUC210 Metric Cylindrical Bearing Insert with 50mm Bore 90mm Outside Dia - Allow 2-3 Days
Regular price
$20.66
ex VAT
Regular price
Sale price
$20.66
ex VAT
Equivalent to: UR210 RB210
In stock
Price Break
5+
$20.45
10+
$19.63
20+
$19.21
50+
$18.59
100+
$18.18
500+
$17.15
1000+
$14.46
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR210 RB210
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
Technical
Technical
| d | 50mm |
|---|---|
| D | 90mm |
| Bi | 51.6mm |
| Be | 24mm |
| N | 19mm |
| M | 32.6mm |
| G | 10mm |
| ds | M10x1, 3/8-24UNF |
| Dynamic Load | 35000 N |
| Static Load | 23200 N |
| Weight | 0.8 kg |
