SKU: CUC208-24

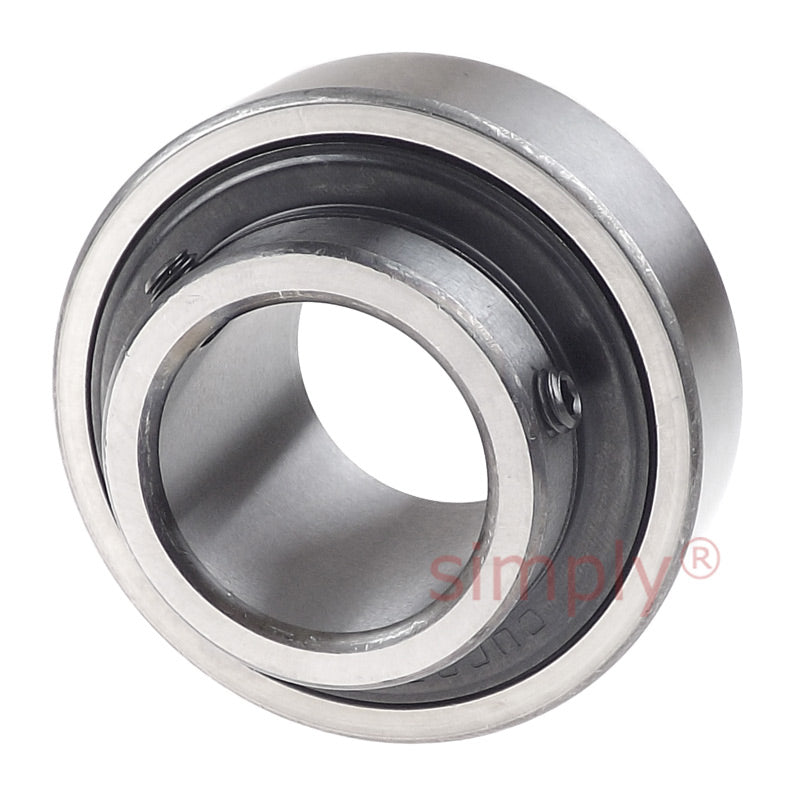

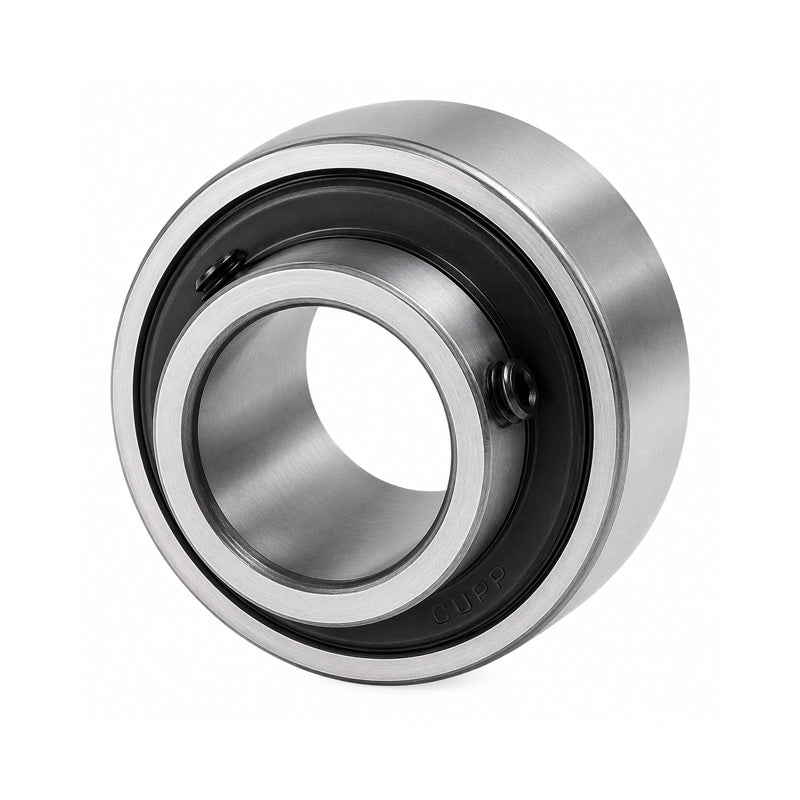

CUC208-24 Imperial Cylindrical Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia
CUC208-24 Imperial Cylindrical Bearing Insert with 1-1/2 inch Bore 80mm Outside Dia
Regular price
$23.96
ex VAT
Regular price
Sale price
$23.96
ex VAT
Equivalent to: UR208-24 RB208-24
In stock
Price Break
10+
$21.32
19+
$20.13
29+
$19.89
39+
$19.65
49+
$19.41
74+
$19.17
99+
$17.97
199+
$17.73
249+
$17.49
499+
$17.25
999+
$16.77
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR208-24 RB208-24
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 80mm
- Type:
- Parallel Outer
Technical
Technical
| d | 1-1/2 inch |
|---|---|
| D | 80mm |
| Bi | 49.2mm |
| Be | 21mm |
| N | 19mm |
| M | 30.2mm |
| G | 8mm |
| ds | M8x1, 5/16-24UNF |
| Dynamic Load | 29500 N |
| Static Load | 18100 N |
| Weight | 0.68 kg |
