SKU: CUC207

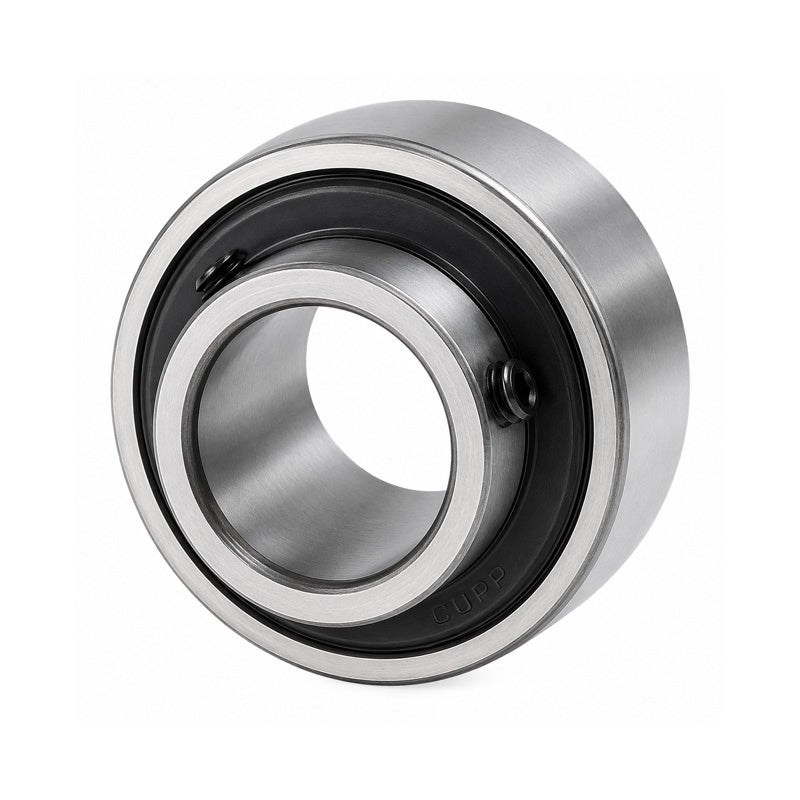

CUC207 Metric Cylindrical Bearing Insert with 35mm Bore 72mm Outside Dia
CUC207 Metric Cylindrical Bearing Insert with 35mm Bore 72mm Outside Dia
Regular price
$20.19
ex VAT
Regular price
Sale price
$20.19
ex VAT
Equivalent to: UR207 RB207
In stock
Price Break
10+
$17.97
19+
$16.96
29+
$16.76
39+
$16.56
49+
$16.35
74+
$16.15
99+
$15.14
199+
$14.94
249+
$14.74
499+
$14.54
999+
$14.13
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR207 RB207
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Type:
- Parallel Outer
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| Bi | 42.9mm |
| Be | 20mm |
| N | 17.5mm |
| M | 25.4mm |
| G | 7mm |
| ds | M8x1, 5/16-24UNF |
| Dynamic Load | 25700 N |
| Static Load | 15300 N |
| Weight | 0.48 kg |
