SKU: CUC206

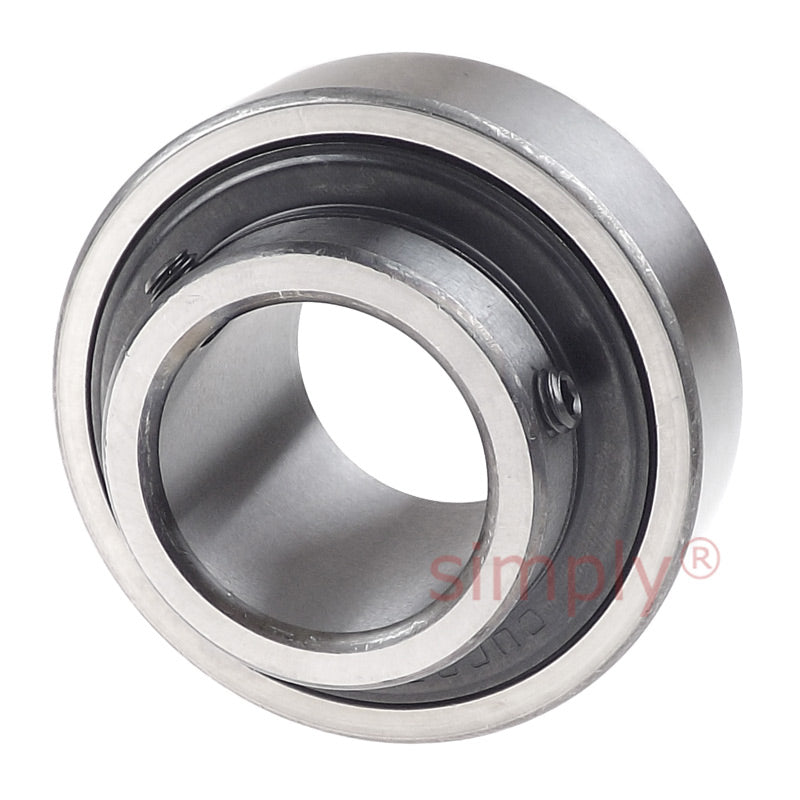

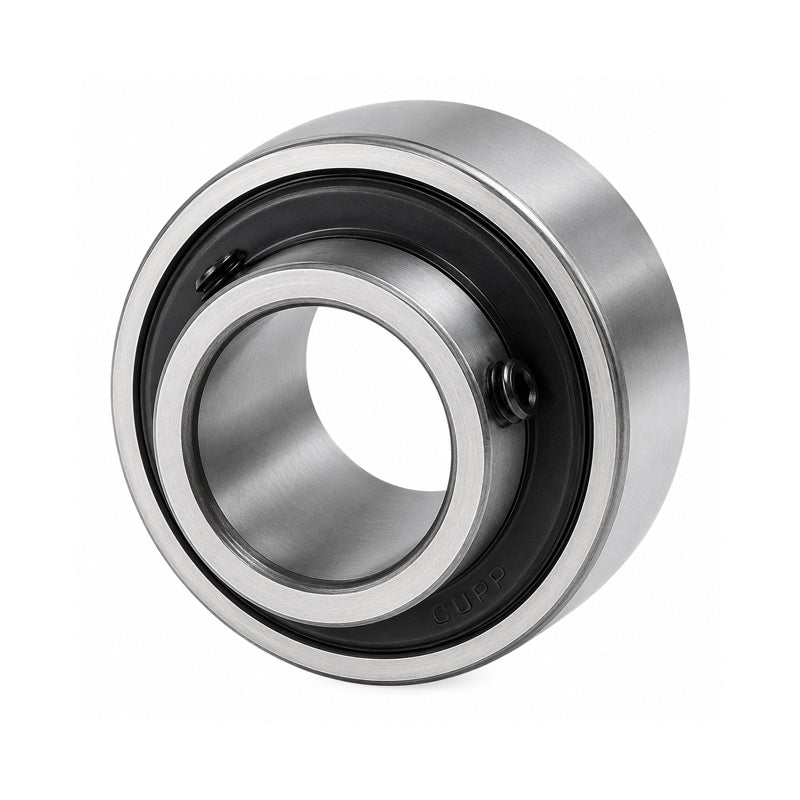

CUC206 Metric Cylindrical Bearing Insert with 30mm Bore 62mm Outside Dia
CUC206 Metric Cylindrical Bearing Insert with 30mm Bore 62mm Outside Dia
Regular price
$14.41
ex VAT
Regular price
Sale price
$14.41
ex VAT
Equivalent to: UR206 RB206
In stock
Price Break
10+
$12.82
19+
$12.10
29+
$11.96
39+
$11.82
49+
$11.67
74+
$11.53
99+
$10.81
199+
$10.66
249+
$10.52
499+
$10.38
999+
$10.09
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR206 RB206
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| Bi | 38.1mm |
| Be | 19mm |
| N | 15.9mm |
| M | 22.2mm |
| G | 5mm |
| ds | M6x1, 1/4-28UNF |
| Dynamic Load | 19500 N |
| Static Load | 11300 N |
| Weight | 0.32 kg |
