SKU: CUC204

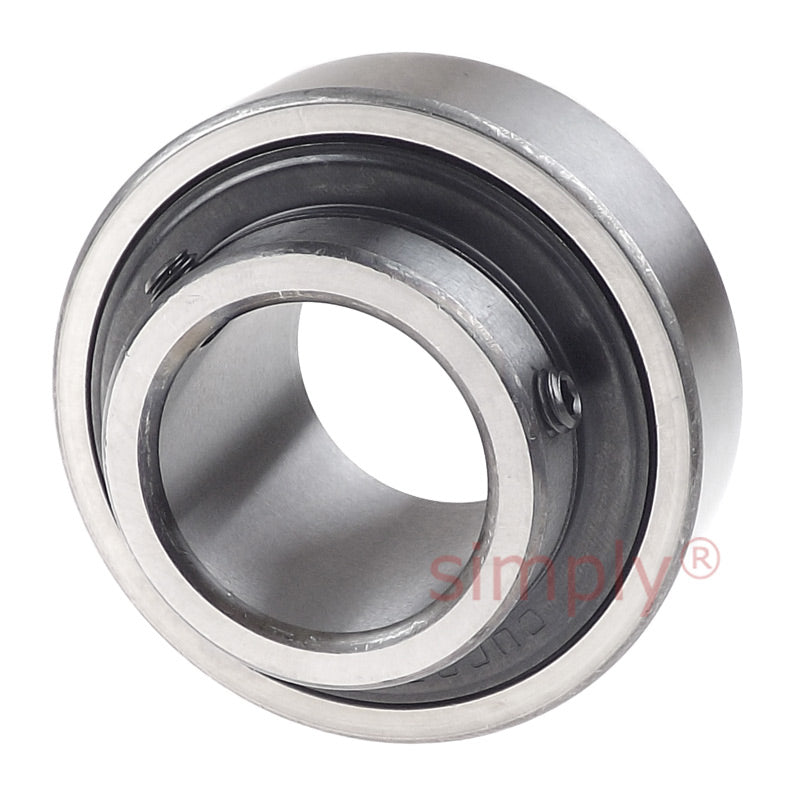

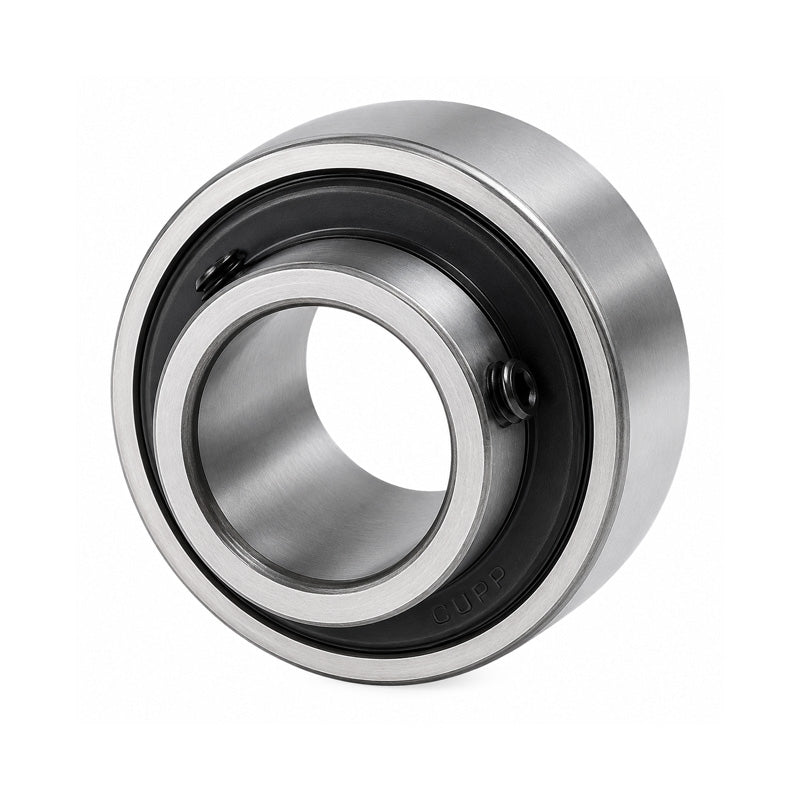

CUC204 Metric Cylindrical Bearing Insert with 20mm Bore 47mm Outside Dia
CUC204 Metric Cylindrical Bearing Insert with 20mm Bore 47mm Outside Dia
Regular price
$11.40
ex VAT
Regular price
Sale price
$11.40
ex VAT
Equivalent to: UR204 RB204
In stock
Price Break
10+
$10.15
19+
$9.58
29+
$9.46
39+
$9.35
49+
$9.23
74+
$9.12
99+
$8.55
199+
$8.44
249+
$8.32
499+
$8.21
999+
$7.98
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: UR204 RB204
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Type:
- Parallel Outer
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 17mm |
| N | 12.7mm |
| M | 18.3mm |
| G | 4.8mm |
| ds | M6x1, 1/4-28UNF |
| Dynamic Load | 12800 N |
| Static Load | 6650 N |
| Weight | 0.16 kg |
