SKU: CSK.35.EU

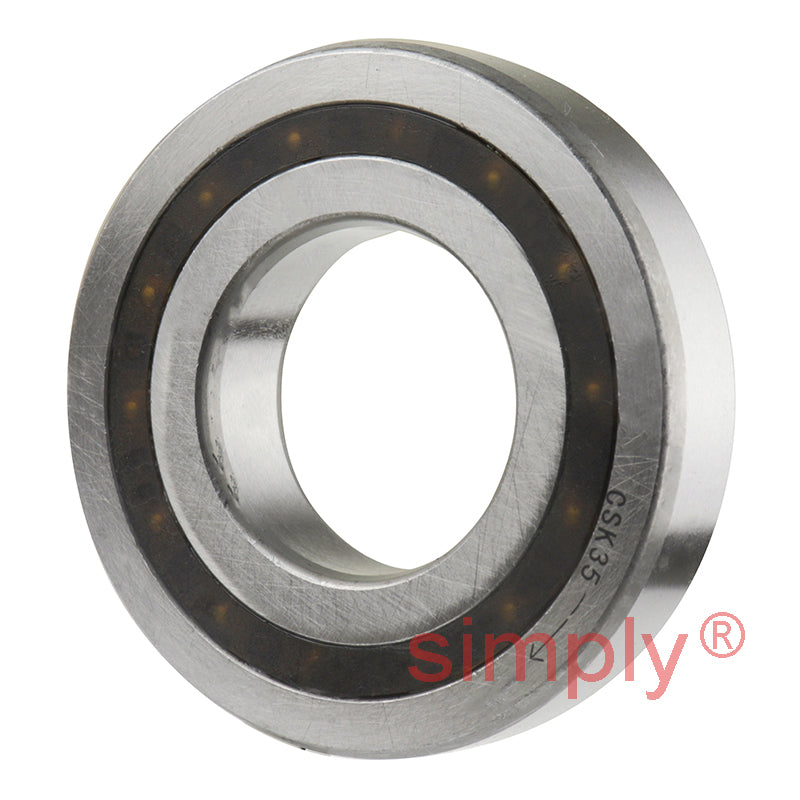

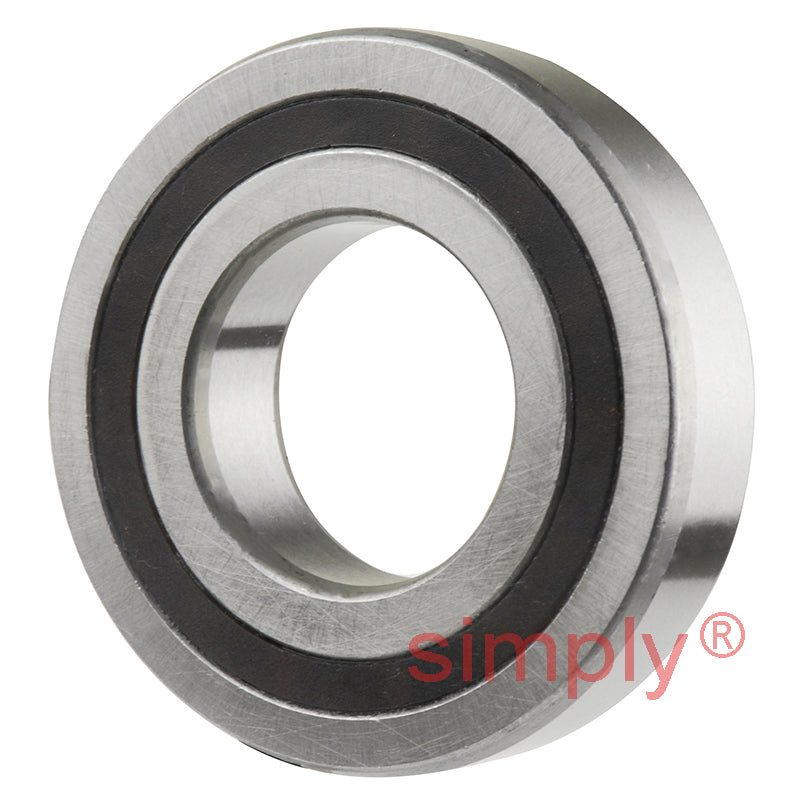

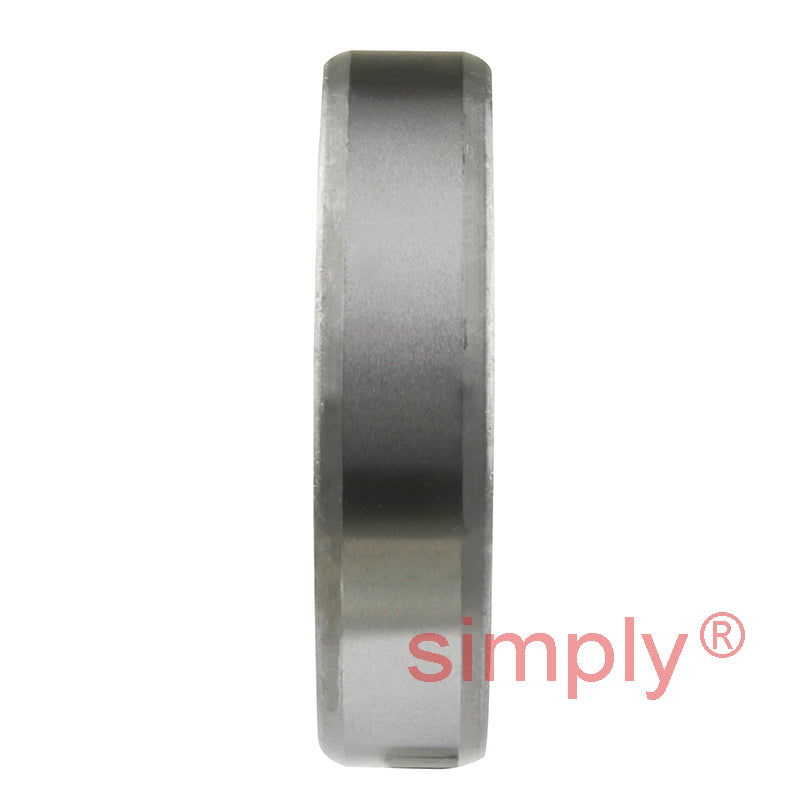

CSK35 35mm Sprag Clutch One Way Bearing Without Keyways 35x72x17mm
CSK35 35mm Sprag Clutch One Way Bearing Without Keyways 35x72x17mm
Regular price
$31.94
ex VAT
Regular price
Sale price
$31.94
ex VAT
In stock
Price Break
10+
$15.09
19+
$14.24
29+
$14.07
39+
$13.90
49+
$13.73
74+
$13.56
99+
$12.71
199+
$12.54
249+
$12.37
499+
$12.20
999+
$11.87
Description
Description
|
CSK Series: This range of clutches can be used as freewheels and can be used in backstop, overrunning or indexing applications. Freewheel bearings are characterised by their ability to turn in one direction only and thus transmit torque whilst having a zero backlash They are supplied filled with grease and are low maintenance. The torque is transmitted on the inner and outer race by an interference fit into a rigid housing and onto a shaft. The tolerance for the housing fit is N6 and the tolerance for the shaft is n6. Operating temperature range: minus 40 deg F to plus 212 deg F or minus 40 deg C to plus 100 deg C Benefits: Cost effective replacement clutch bearing, low maintenance |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 17mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| L | 17mm |
| Torque Tkn | 175 Nm |
| n max | 3600 rpm |
| Dynamic load C | 12.6 kN |
| Static load Co | 7.28 kN |
| Weight | 0.3 kg |
| Drag Torque Tr | 5.8 Ncm |
