SKU: CSB.207-20

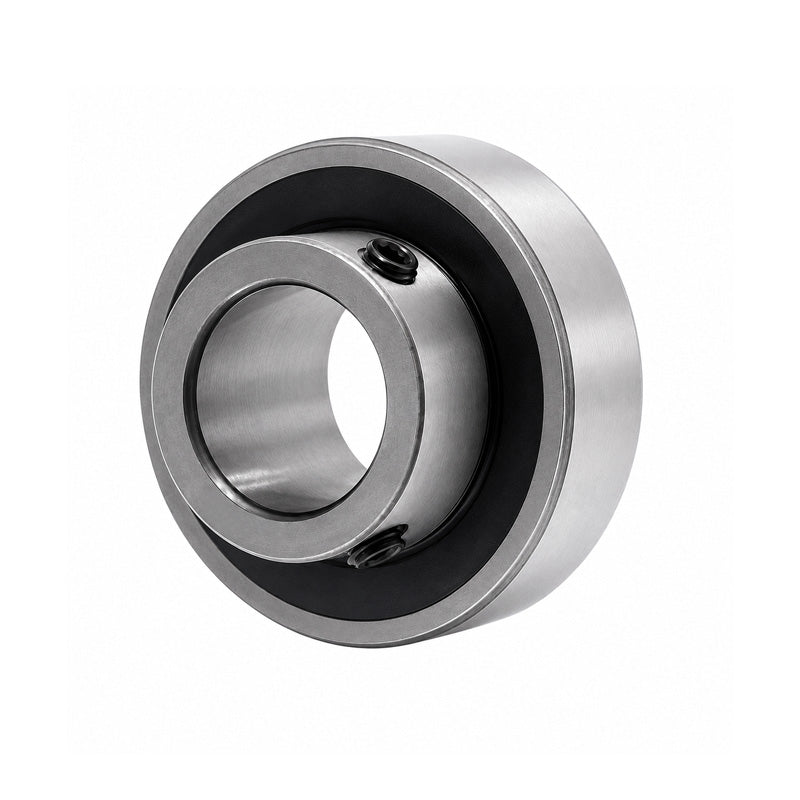

CSB207-20 Imperial Bearing Insert with 1-1/4 inch Bore 72mm Outside Dia
CSB207-20 Imperial Bearing Insert with 1-1/4 inch Bore 72mm Outside Dia
Regular price
$27.59
ex VAT
Regular price
Sale price
$27.59
ex VAT
In stock
Price Break
10+
$24.56
19+
$23.18
29+
$22.90
39+
$22.62
49+
$22.35
74+
$22.07
99+
$20.69
199+
$20.42
249+
$20.14
499+
$19.86
999+
$19.31
Couldn't load pickup availability
Description
Description
|
CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 72mm
- Style:
- CSB
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| Be | 17mm |
| D | 72mm |
| Bi | 32mm |
| n | 8.5mm |
| m | 23.5mm |
| G | 6.5mm |
| h | 5.5mm |
| Grub screw | 5/16-24 UNF |
| Weight | 0.42 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
