SKU: CSB.206

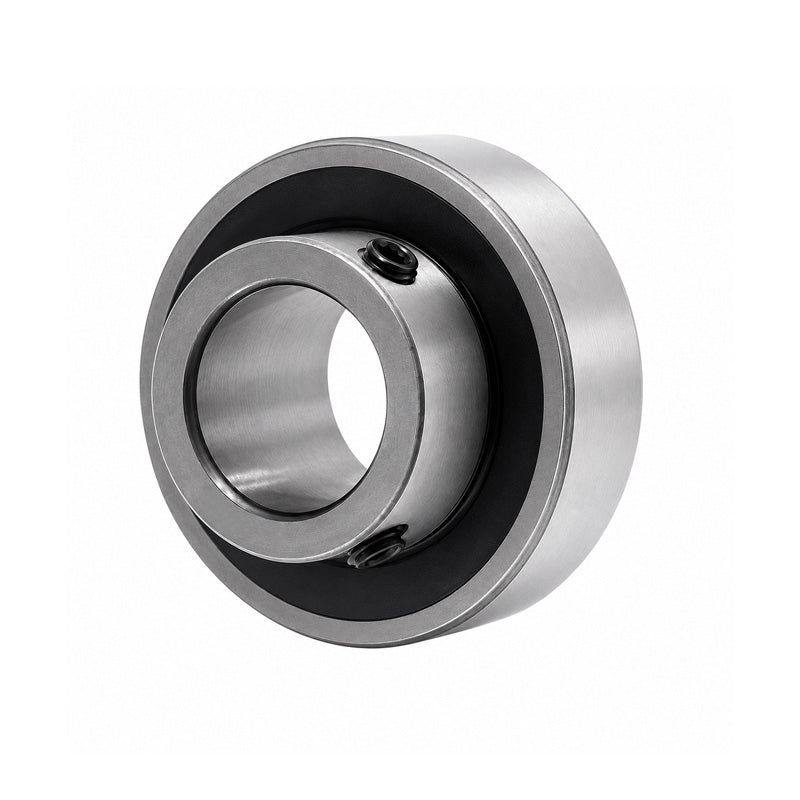

CSB206 Metric Bearing Insert with 30mm Bore 62mm Outside Dia
CSB206 Metric Bearing Insert with 30mm Bore 62mm Outside Dia
Regular price
$21.27
ex VAT
Regular price
Sale price
$21.27
ex VAT
In stock
Price Break
10+
$18.93
19+
$17.87
29+
$17.65
39+
$17.44
49+
$17.23
74+
$17.02
99+
$15.95
199+
$15.74
249+
$15.53
499+
$15.31
999+
$14.89
Couldn't load pickup availability
Share this product
Description
Description
|
CSB or 13--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found fitted directly into machine frames as it has a parallel outer diameter and is of flat back design to allow close proximity fitment of shafts and rollers. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Style:
- CSB
- Type:
- Parallel Outer
Technical
Technical
| d | 30mm |
|---|---|
| Be | 16mm |
| D | 62mm |
| Bi | 30mm |
| n | 8mm |
| m | 22mm |
| G | 5.5mm |
| h | 5mm |
| Grub screw | M6X1.0 |
| Weight | 0.27 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
