SKU: CSA.205-16

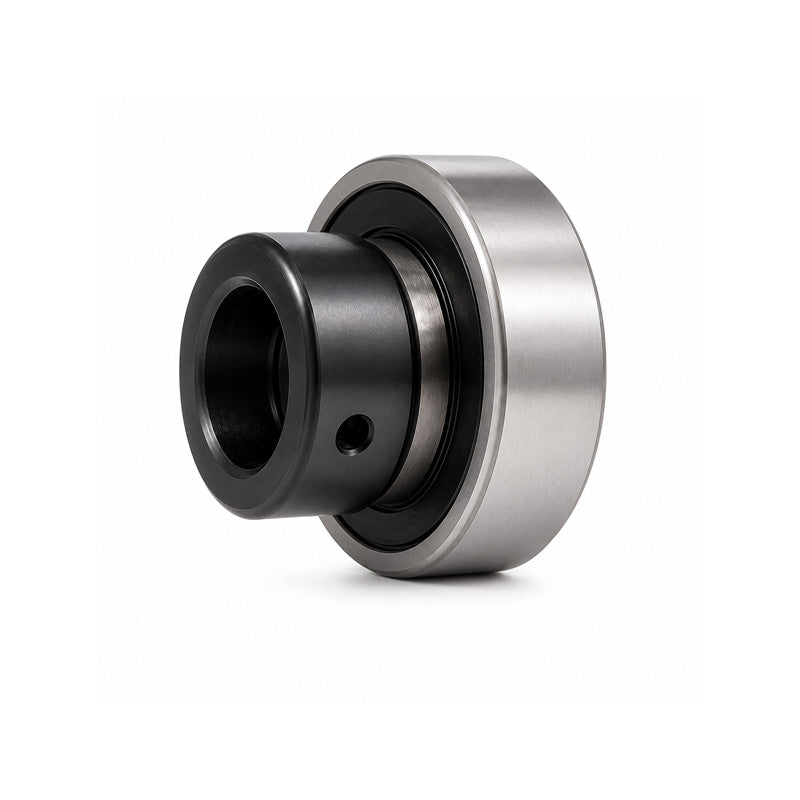

CSA205-16 Imperial Bearing Insert with Locking Collar 1 inch Bore 52mm Outside Dia
CSA205-16 Imperial Bearing Insert with Locking Collar 1 inch Bore 52mm Outside Dia
Regular price
$17.11
ex VAT
Regular price
Sale price
$17.11
ex VAT
In stock
Price Break
3+
$8.08
4+
$7.63
9+
$7.54
19+
$7.45
49+
$7.35
99+
$7.26
499+
$6.81
999+
$6.72
1999+
$6.63
2999+
$6.54
4999+
$6.36
Description
Description
|
CSA or 13--ECG or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert has a parallel outer diameter and is typically fitted directly into the machine frame |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 52mm
- Style:
- CSA
Technical
Technical
| d | 1 inch |
|---|---|
| Be | 15mm |
| D | 52mm |
| z | 21.5mm |
| n | 7.5mm |
| m | 14mm |
| Bi | 31mm |
| k | 38.1mm |
| H | 13.5mm |
| G | 5mm |
| h | 3.9mm |
| Grub screw | 1/4"-28UNF |
| Weight | 0.22 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
